Lithium Ion Battery Energy Storage: Complete Guide to Systems, Cost, and Commercial Applications (2026)

Introduction

The global energy transition has reached a critical inflection point in 2026. As a senior storage application engineer with two decades of experience in both stationary BESS and EV charging infrastructure, I have witnessed the evolution of lithium ion battery energy storage from niche laboratory prototypes to the primary catalyst of grid modernization. According to the International Energy Agency (IEA) 2025 Energy Storage Report, the total installed capacity of battery storage is expected to exceed 1,200 GW by 2030. For commercial and industrial (C&I) decision-makers, understanding the technical granularity and economic drivers of lithium ion battery energy storage is no longer optional—it is a prerequisite for operational resilience and decarbonization.

What Is a Lithium Ion Battery Energy Storage System (BESS)?

Definition of Lithium Ion Battery Energy Storage

A lithium ion battery energy storage system is a sophisticated electrochemical infrastructure designed to decouple energy generation from consumption. Unlike traditional power assets, a BESS provides “instantaneous dispatchability.” In technical terms, it utilizes the movement of lithium ions between a cathode and an anode to store electrical potential. For 2026-grade industrial systems, this typically involves high-density LFP (Lithium Iron Phosphate) chemistry, providing an energy density of $160-190 Wh/kg$ at the pack level, coupled with power electronics capable of millisecond-level response.

How a Battery Energy Storage System (BESS) Works

The operational lifecycle of a lithium ion battery energy storage system revolves around the “State of Charge” (SOC) management.

1. Charging Phase: During periods of solar over-generation or low-cost “off-peak” grid pricing, the Power Conversion System (PCS) rectifies AC power to DC to fill the battery cells.
2. Storage Phase: The Battery Management System (BMS) maintains the cells in a stable electrochemical state, monitoring parameters like “Open Circuit Voltage” (OCV).
3. Discharging Phase: When the Energy Management System (EMS) detects a peak load or a grid outage, the PCS inverts the DC power back to AC, synchronized to the grid frequency ($50/60 Hz$).

Key Components in a Lithium Ion Battery Energy Storage System

A robust lithium ion battery energy storage solution is a “System of Systems.” Its reliability depends on four pillars:

• Battery System: The DC source, comprising thousands of cells.
• Power Conversion System (PCS): The bidirectional inverter that manages the AC/DC interface.
• Battery Management System (BMS): The multi-tier safety and balancing logic.
• Energy Management System (EMS): The high-level software that executes market-driven strategies.

Key Components of a Lithium Ion Battery Energy Storage System

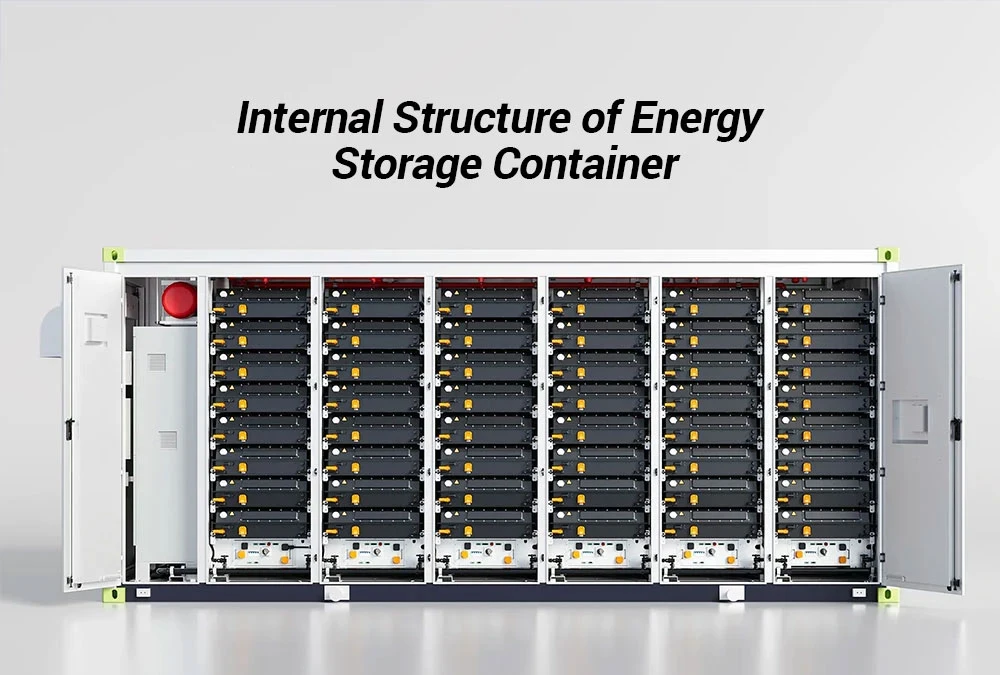

Lithium Ion Battery Pack Structure and Cell Chemistry

In 2026, the industry has largely pivoted away from NMC (Nickel Manganese Cobalt) for stationary applications due to safety concerns. LFP (Lithium Iron Phosphate) is now the dominant chemistry for lithium ion battery energy storage.

• Safety Advantage: LFP has a thermal runaway threshold of approximately $270°C$, compared to $210°C$ for NMC.
• Cycle Life: A premium LFP cell in 2026 can sustain $8,000$ to $10,000$ cycles at $0.5C/0.5C$ rates before reaching $80\%$ State of Health (SOH).
• Rack & Container Design: Modern systems utilize “High-Density Racks” where cells are laser-welded into modules, then integrated into IP54 or IP55 rated outdoor enclosures with built-in fire suppression (Novec 1230 or Aerosol).

Power Conversion System (PCS) in Battery Energy Storage

The PCS is the “Heart” of the system. According to recent BloombergNEF (BNEF) insights, the cost of energy storage projects reached record lows in 2025, driven largely by improvements in PCS efficiency and battery cell oversupply.

• Bidirectional Function: The PCS must handle “Four-Quadrant” operation, managing both real power ($P$) and reactive power ($Q$).
• Grid-Tied vs. Off-Grid: Advanced PCS units now feature “Grid-Forming” capabilities. This allows the lithium ion battery energy storage system to act as a voltage source, enabling “Black Start” capabilities for industrial plants during total grid failure.

Battery Management System (BMS) for Energy Storage Safety

As an engineer, I consider the BMS the “Intelligence” of the system. A professional-grade BMS follows a three-tier architecture:

1. BMU (Battery Management Unit): Monitors individual cell voltages and temperatures.
2. BCU (Battery Cluster Unit): Aggregates data from multiple BMUs and manages the high-voltage contactors.
3. BAU (Battery Array Unit): Communicates with the PCS and EMS, ensuring the entire 1MWh+ system stays within its “Safe Operating Area” (SOA).

• Active Balancing: Unlike passive balancing (which dissipates excess energy as heat), 2026-spec BMS units use active balancing to transfer energy between cells, extending the usable capacity by $3-5\%$.

Energy Management System (EMS) for Commercial Energy Storage

The EMS is the “Economic Brain.” For a commercial lithium ion battery energy storage system, the EMS executes complex algorithms:

• Peak Shaving: Reducing the maximum power drawn from the grid to lower demand charges.
• Time-of-Use (ToU) Optimization: Shifting energy consumption from expensive peak hours to cheap off-peak hours.
• VPP (Virtual Power Plant) Integration: Aggregating multiple BESS units to provide frequency regulation services to the utility, generating additional revenue.

Lithium Ion Battery Energy Storage System Cost per kWh

What Determines Lithium Ion Battery Energy Storage Cost?

The CAPEX (Capital Expenditure) of a BESS is no longer just about the batteries. In 2026, the breakdown is:

• Cell & Pack Cost ($45\%$): Influenced by raw material prices (Lithium Carbonate).
• PCS & Balance of System ($20\%$): Includes transformers, switchgear, and cabling.
• EPC & Installation ($25\%$): Site preparation, foundation, and grid interconnection studies.
• Soft Costs ($10\%$): Permitting, insurance, and financing.

Commercial Energy Storage ROI and Payback Period

For an industrial facility in a high-tariff region (e.g., California, Germany, or Australia), the ROI of a lithium ion battery energy storage system is driven by:

1. Demand Charge Savings: Often representing $30-50\%$ of the monthly utility bill.
2. Energy Arbitrage: The price delta between day and night electricity rates.
3. Investment Tax Credits (ITC): In the US, the Inflation Reduction Act (IRA) continues to provide up to $30-40\%$ tax credits for energy storage through 2026.
4. Typical Payback: 4.5 to 6 years for C&I systems.

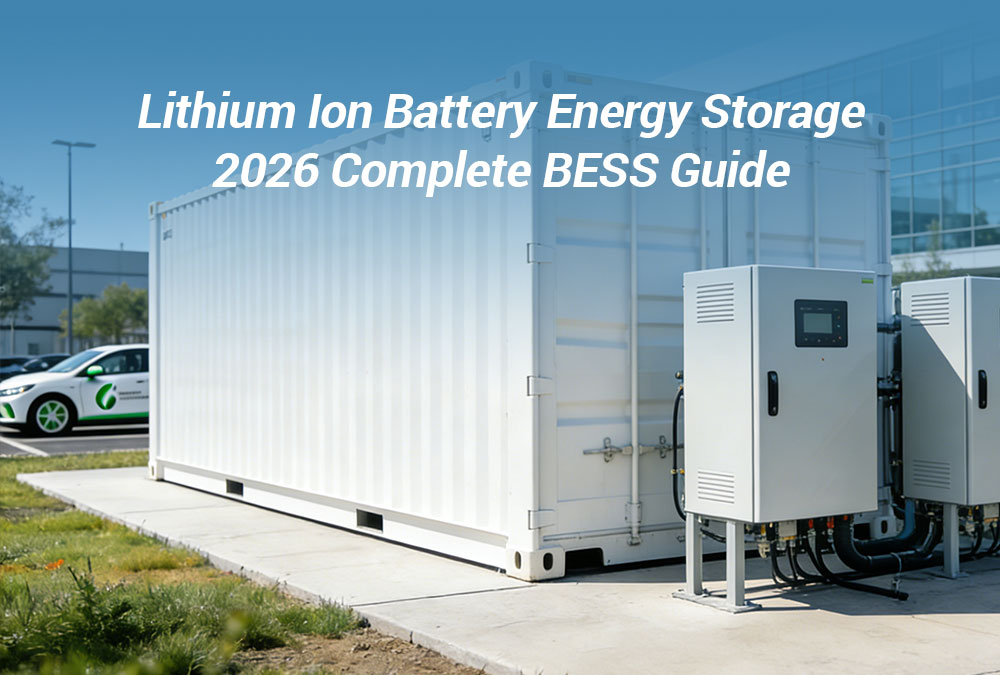

1MWh Lithium Ion Battery Energy Storage System Price Example

A turnkey 1MWh/2MWh (2-hour duration) LFP-based lithium ion battery energy storage system in 2026 typically costs between $320,000 and $480,000 (fully installed). While this is a significant investment, the “Levelized Cost of Storage” (LCOS) has dropped to approximately $0.07 – $0.09 per kWh over the system’s lifetime.

Commercial and Industrial Lithium Ion Battery Energy Storage Applications

Peak Shaving with Commercial Battery Energy Storage

In the manufacturing sector, motor startups and heavy machinery create massive “peaks.” By using a BESS to provide that surge of power, a company can downsize its required grid connection, saving hundreds of thousands in infrastructure costs.

Solar + Lithium Ion Battery Energy Storage Integration

“Solar plus Storage” is the new standard. By integrating lithium ion battery energy storage, businesses avoid “curtailment” (wasted solar energy). The EMS ensures that every photon captured by the solar panels is either used immediately or stored for the evening peak.

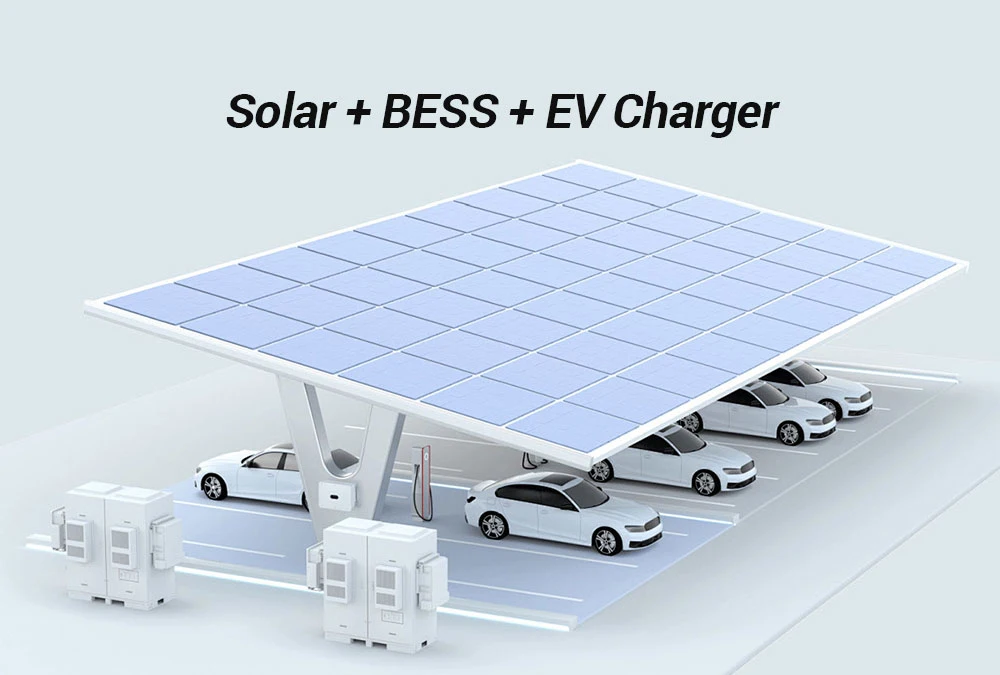

EV Charging Station with Battery Energy Storage

As a charging equipment engineer, I’ve seen that the biggest bottleneck for EV adoption is grid capacity. A lithium ion battery energy storage system acts as a “power reservoir.” It allows a site with only a $100kW$ grid connection to offer $350kW$ ultra-fast charging by “buffering” the energy in the batteries.

Microgrid and Utility-Scale Battery Energy Storage (BESS)

For remote mines or island communities, the BESS is the backbone. It integrates diesel generators, wind, and solar into a cohesive microgrid, often reducing fuel consumption by over $60\%$.

Safety Standards for Lithium Ion Battery Energy Storage Systems

Thermal Runaway Protection in Lithium Ion Energy Storage

Safety is the paramount concern for 2026 deployments. Liquid Cooling has largely replaced air cooling for systems over $500kWh$.

• Efficiency: Liquid cooling maintains cell temperatures within a tight $\pm 2°C$ window.
• Safety: Integrated fire suppression systems now feature multi-stage detection (Smoke, Heat, and Off-gas detection for CO and Hydrogen).

UL, IEC and International Certification

A bankable lithium ion battery energy storage system must hold:

• UL 9540: System-level safety.
• UL 9540A: Unit-level fire testing (crucial for insurance).
• IEC 62619: Safety requirements for large-scale industrial batteries.
• NFPA 855: The standard for the installation of stationary energy storage.

How to Choose a Lithium Ion Battery Energy Storage Manufacturer

OEM vs. Turnkey Battery Energy Storage System Provider

• OEM: Best for utility-scale developers who want to source their own PCS and EMS.
• Turnkey: Ideal for C&I users. These “All-in-One” systems are factory-assembled, pre-commissioned, and significantly reduce “on-site risk.”

Key Questions to Ask an Energy Storage Supplier

1. What is the Round-Trip Efficiency (RTE)? You should expect $>88\%$ for the entire AC-to-AC system.
2. What is the Degradation Guarantee? Ensure the contract specifies a minimum capacity after $10$ years or $X$ amount of energy throughput.
3. Local Support: Does the manufacturer have field service engineers in your region?

Advantages of Lithium Ion Battery Energy Storage Over Other Technologies

Lithium Ion vs. Lead Acid Energy Storage

• Energy Density: Lithium-ion is $5x$ more energy-dense.
• Maintenance: Lithium is “zero-maintenance,” whereas lead-acid requires venting and periodic checks.
• Depth of Discharge (DoD): Lithium-ion can safely discharge to $90-100\%$, while lead-acid is limited to $50\%$.

Lithium Ion vs. Flow Battery Energy Storage

While Vanadium Flow Batteries (VFB) are gaining traction for “Long Duration Energy Storage” ($>8$ hours), lithium ion battery energy storage remains the superior choice for 2-4 hour applications due to its higher efficiency ($90\%$ vs $70\%$) and significantly smaller physical footprint.

FAQ: Lithium Ion Battery Energy Storage (Optimized for Featured Snippets)

What is lithium ion battery energy storage?

Lithium ion battery energy storage is a system that stores electricity in lithium-based cells and releases it when needed. It includes batteries, PCS, BMS, and EMS to manage charging, discharging, and grid interaction safely and efficiently.

How much does a lithium ion battery energy storage system cost?

The cost typically ranges from $250–$500 per kWh for commercial systems, depending on capacity, cooling method, PCS configuration, and installation complexity.

How long does a lithium ion battery energy storage system last?

Most commercial lithium ion battery energy storage systems last 10–15 years, with 6,000–8,000 charge cycles depending on depth of discharge and temperature control.

Is lithium ion battery energy storage safe?

Yes, modern systems include advanced BMS protection, fire suppression systems, and comply with UL and IEC standards to prevent thermal runaway and electrical faults.

What is the difference between BESS and lithium ion battery storage?

BESS (Battery Energy Storage System) refers to the complete system including PCS, BMS, and EMS, while lithium ion battery storage may only refer to the battery cells themselves.

Technical Appendix: The Future of BESS in 2026

As we look toward the end of the decade, the integration of Artificial Intelligence (AI) into the EMS will be the next frontier. Predictive maintenance will allow us to identify a failing cell weeks before it becomes a safety risk. Furthermore, the “Second Life” battery market is emerging, where retired EV batteries are repurposed for stationary lithium ion battery energy storage, potentially reducing costs by another $30\%$.

In my two decades of engineering, I have never seen a more exciting time for this technology. The transition to a resilient, battery-backed grid is no longer a “future” scenario—it is happening now.
