Built for today’s high-performance DC fast charging sites, this 30kW EV charger module pushes the standard forward with advanced power electronics and precise engineering. It delivers the kind of strong, steady output that busy urban stations, highway service areas, bus depots, and logistics hubs rely on every day.
For system integrators and charger manufacturers, choosing this 30kW module means giving your equipment a powerful, reliable core. It also makes your path into the global market smoother—simpler design, easier deployment, and lower maintenance over the long run.
Trust comes from solid technology. Global access comes from proven certifications. This 30kW high-power module is built to help you expand your fast-charging network with confidence and speed.
This 30kW EV charger module is suitable for:
AC Input
| Input voltage | 260VAC~485VAC Eu version; 260VAC~530VAC NA version |
| Input frequency | 55±10Hz |
| THD | ≤5% |
| Power factor | Rated outputload PF≥0.99 |
| Max. input current | <60A |
| Input under voltage protection | 255±5V |
| Input over voltage protection | 490±5V |

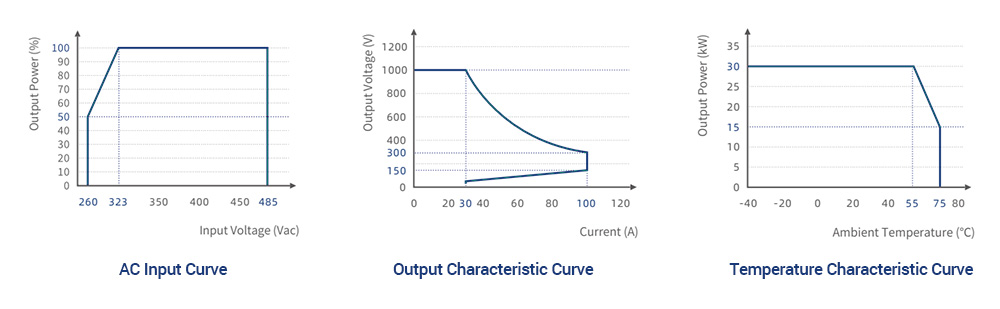

| Input power derating | 260±5V |
DC Output
| Rated output | 1000V/30A |
| Constant power voltage range | 30kW(300V-1000V) |
| Output voltage range | 150V-1000V |
| Output current range | 0-100A |
| Output over voltage protection | 1010±5V |
| Output under voltage alarm constant | 140±2V |
| Short circuit protection | Short circuit retraction constant current output is adopted in case of short circuit, which can be recovered automaticall |
| Voltage stabilized accuracy | ≤±0.5% |
| Load sharing | <±3% |
| Max. startup overshoot | <±1% |
| Current stabilized accuracy | <±1% |
| Startup time | 3s≤st≤8s |
| Efficiency | Highest efficiency>96%, rated efficiency>95% |
Communication&Alarm
| Communication | CAN |
| Max. Number of parallel machines | 60pcs |
| Alarm and status | CAN bus communication, LED display |
Operating Environment
| Operating temperature | -40°C~75°C,derates from 55°C |
| Overtemperature protection | On temperature >75°C±4°C or <-40°C±4°C module will shut down automatically |
| Storage temperature | -40°C~85°C |
| Humidity≤ | ≤95% RH, without condensation |
| Atmospheric pressure/Altitude | 79kPa~106kPa/2000m |
Physical Characteristics
| Acoustic noise | <65dB |
| Cooling | Fan cooling |
| Dimension | 300mm (W)*84mm(H)*437.5mm(D) |
| Weight | <15.5kg |
An EV charger module is the heart of any DC fast charging system. It’s the unit that quietly does the heavy lifting — turning AC power into the stable, high-quality DC energy that modern electric vehicles rely on. Whether the module is installed in a public charging station, a fleet depot, or a commercial energy hub, its job is simple: deliver clean, steady power, charge after charge, in all kinds of conditions.
Unlike complete chargers that you see in parking lots, the module works behind the scenes. It provides the raw power output that determines how fast and how safely an EV can charge. A high-efficiency module keeps energy loss low, reduces heat, and helps operators cut long-term costs. With wide voltage adaptability and constant-power output, it supports today’s mainstream EVs and the next generation of high-voltage platforms without needing hardware changes.
For charging manufacturers and system integrators, the EV charger module is where reliability starts. It’s compact, responsive, and built for continuous operation. It offers precise control, smooth communication, and a full suite of safety protections. And because it’s modular, it scales effortlessly — one unit, or dozens working together, depending on the size of the site.
It may not be visible to drivers, but it’s the backbone of fast charging everywhere. A dependable module keeps stations running, vehicles moving, and charging networks ready for the road ahead.
