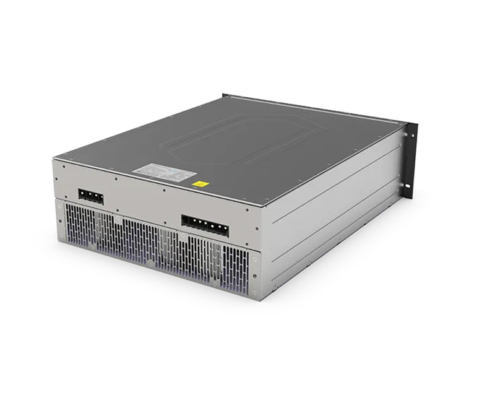

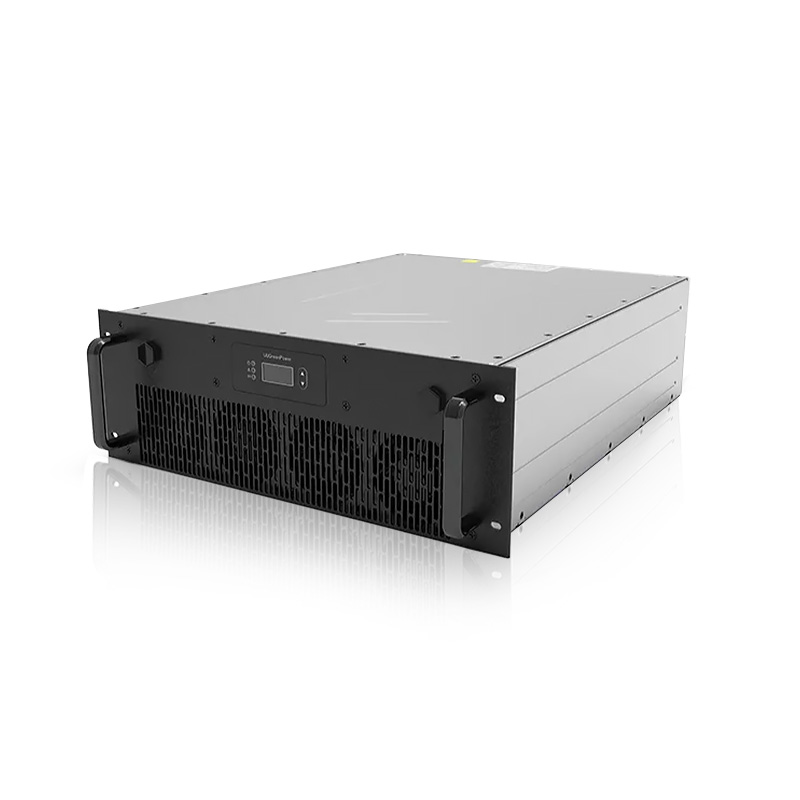

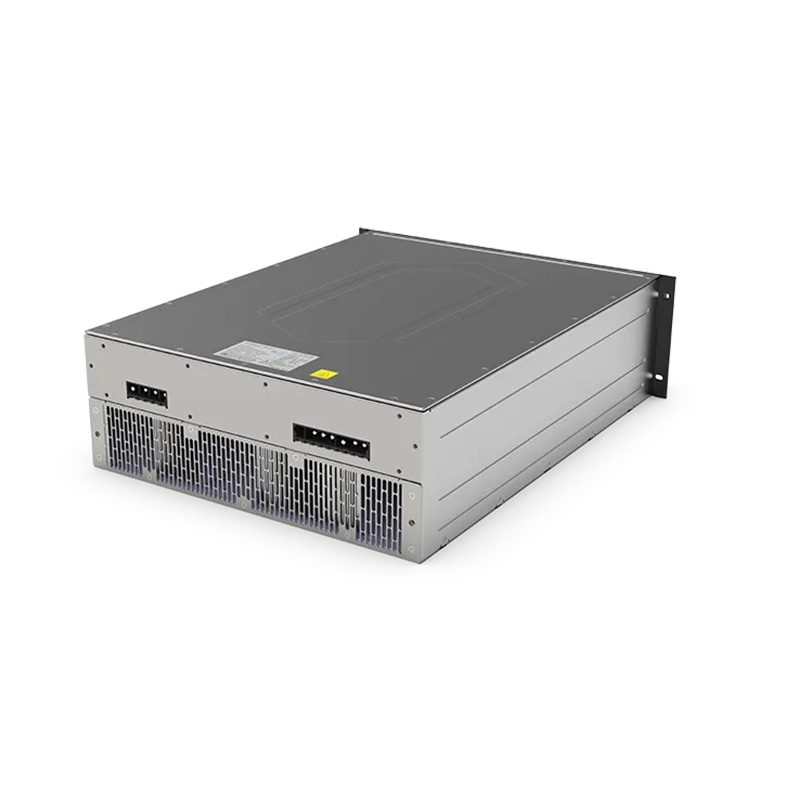

The 30kW IP65 DC charging module is built for harsh outdoor environments where reliability matters most. It uses advanced power electronics and an industrial-grade sealed design to keep working in heat, humidity, dust, salt air, and sudden temperature swings. With full IP65 protection—dust-tight and resistant to heavy water spray—it can run outdoors year-round without extra housings or complex cooling systems. This keeps your charger design simple and lowers overall hardware cost.
The module delivers high power density with peak efficiency above 95%, which cuts energy loss and reduces heat buildup. Every internal circuit is coated for moisture and corrosion resistance, and the wide-temperature components support full-power output from –40°C to +70°C. No matter the season or shift schedule, it stays stable and ready to charge.
It’s engineered for long life and minimal maintenance, backed by a five-year warranty. CE, TÜV, and UL certifications ensure the module meets global safety, EMC, and efficiency standards, making it a solid choice for demanding DC fast-charging applications worldwide.
Electric Mining Trucks
Dust, vibration, and extreme temperature changes often damage traditional chargers in open-pit mines. The IP65 fully sealed design keeps dust out and manages heat effectively, allowing fast charging between shifts to keep heavy mining trucks moving all day.
Port and Terminal Trucks (AGVs, Straddle Carriers, Reach Stackers)
Ports face constant salt-air corrosion. This module passes strict salt-spray testing and can be installed directly in exposed yards or along the waterfront. With hot-swap support, maintenance can be done without stopping operations, keeping cargo flow uninterrupted.
Electric Excavators, Loaders, and Forklifts
Construction and warehouse equipment works around mud, shocks, and oil contamination. The rugged housing and sealed connectors make this module dependable for temporary on-site charging or indoor fast-charging stations, helping fleets transition from diesel to electric with fewer headaches.
AC Input
| Input voltage | 260VAC~485VAC Eu version; 260VAC~530VAC NA version |
| Input frequency | 55±10Hz |
| THD | ≤5% |
| Power factor | Rated outputload PF≥0.99 |
| Max. input current | <60A |
| Input under voltage protection | 255±5V,backlash≥15V |
| Input over voltage protection | 490±5V,backlash≥15V |
| Input power derating | 260±5V |
DC Output
| Rated output | 1000V/30A |

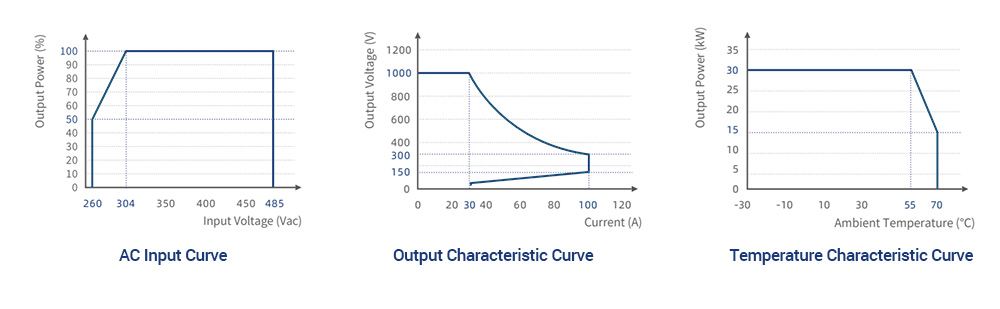

| Constant power voltage range3 | 30kW(300V-1000V) |
| Output voltage range | 150V-1000V |
| Output current range | 0-100A |
| Output over voltage protection | 1010±5V |
| Output under voltage alarm constant | 140±2V |
| Short circuit protection | Short circuit retraction constant current output is adopted in case of short circuit, which can be recovered automaticall |
| Voltage stabilized accuracy | ≤±0.5% |
| Load sharing | <±3% |
| Max. startup overshoot | <±1% |
| Current stabilized accuracy | <±1% |
| Startup time | 3s≤st≤8s |
| Efficiency | Highest efficiency>96%, rated efficiency>95% |
Communication&Alarm
| Communication | CAN |
| Max. Number of parallel machines | 60pcs |
| Alarm and status | CAN bus communication, LED display |
Operating Environment
| Operating temperature | -30°C~70°C,derates from 55°C |
| Overtemperature protection | On temperature >70°C±4°C or <-30°C±4°C module will shut down automatically |
| Storage temperature | -40°C~85°C |
| Humidity≤ | ≤95% RH, without condensation |
| Atmospheric pressure/Altitude | 79kPa~106kPa/2000m |
Physical Characteristics
| Acoustic noise | <55dB |
| Cooling | Fan cooling |

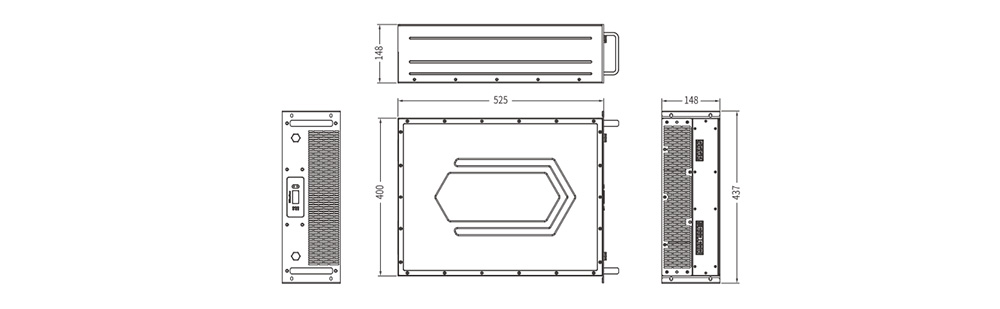

| Dimension | 400mm (W)*148mm(H)*525mm(D) |
| Weight | <33kg |
An EV charger module is the heart of any DC fast charging system. It’s the unit that quietly does the heavy lifting — turning AC power into the stable, high-quality DC energy that modern electric vehicles rely on. Whether the module is installed in a public charging station, a fleet depot, or a commercial energy hub, its job is simple: deliver clean, steady power, charge after charge, in all kinds of conditions.
Unlike complete chargers that you see in parking lots, the module works behind the scenes. It provides the raw power output that determines how fast and how safely an EV can charge. A high-efficiency module keeps energy loss low, reduces heat, and helps operators cut long-term costs. With wide voltage adaptability and constant-power output, it supports today’s mainstream EVs and the next generation of high-voltage platforms without needing hardware changes.
For charging manufacturers and system integrators, the EV charger module is where reliability starts. It’s compact, responsive, and built for continuous operation. It offers precise control, smooth communication, and a full suite of safety protections. And because it’s modular, it scales effortlessly — one unit, or dozens working together, depending on the size of the site.
It may not be visible to drivers, but it’s the backbone of fast charging everywhere. A dependable module keeps stations running, vehicles moving, and charging networks ready for the road ahead.
