AnengJI THS15 is a high-performance 48V 280Ah LiFePO4 battery with a total energy capacity of 14.33kWh. Designed with a standard 5U rack mount structure, this lithium battery storage solution is ideal for residential solar energy storage, backup power systems, off-grid applications, and commercial energy storage projects.
Featuring advanced lithium iron phosphate (LiFePO4) battery technology, THS15 delivers excellent safety, long cycle life, and stable performance for long-term operation. The built-in intelligent Battery Management System (BMS) provides comprehensive protection, while the integrated 2A active cell balancing technology improves battery consistency and maximizes available energy capacity.

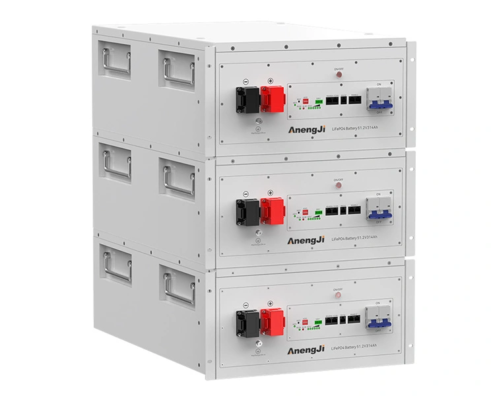

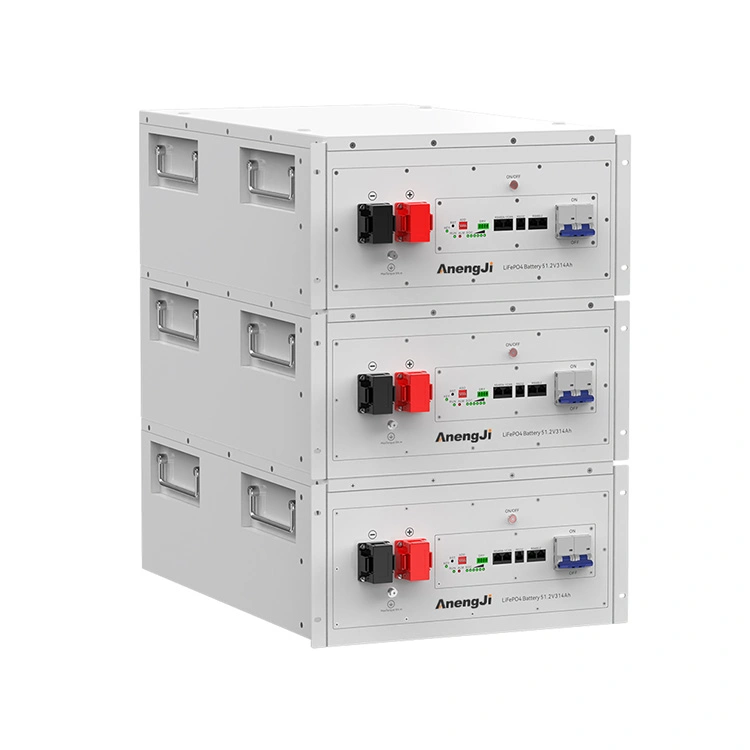

Supporting up to 16 units connected in parallel, THS15 offers flexible scalability from household solar battery systems to larger commercial and industrial energy storage applications. It is an ideal choice for global distributors, solar installers, and energy storage system integrators looking for a reliable and expandable battery solution.
Key Features & Benefits
Modular Rack Mount Design for Easy Expansion

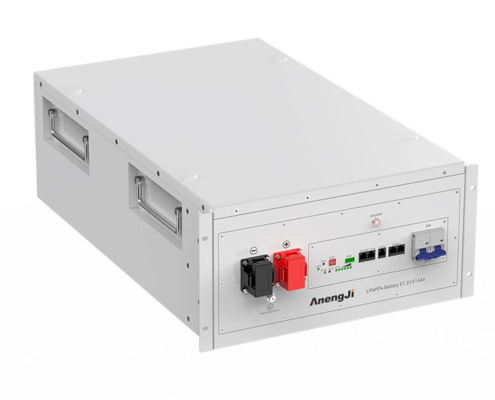

THS15 adopts a standard 5U rack mount battery design, which is compatible with mainstream battery cabinets and server racks. The modular structure allows users to easily expand storage capacity by connecting up to 16 battery units in parallel, meeting different energy storage requirements from residential systems to commercial applications.
Long Cycle Life with Lower Total Cost
Equipped with high-quality LiFePO4 cells, THS15 provides excellent durability and safety. Under 80% depth of discharge (DOD) conditions, the battery achieves more than 6,000 cycles with a designed service life of over 10 years, helping reduce replacement costs and improve the overall return on investment of energy storage systems.
2A Active Cell Balancing Technology
The integrated 2A active balancing function automatically balances the voltage difference between individual cells during charging and discharging. This helps reduce capacity loss caused by cell imbalance, improves battery efficiency, and extends the overall lifespan of the lithium battery system.
Intelligent BMS with Bluetooth Monitoring
THS15 is equipped with an intelligent BMS battery management system that provides multiple safety protections, including overcharge, over-discharge, overcurrent, short circuit, over-temperature, and low-temperature protection.
The built-in Bluetooth monitoring function allows users to check battery status through a mobile APP, while CAN/RS485/RS232 communication interfaces ensure smooth integration with solar inverters, EMS platforms, and energy management systems.
Wide Compatibility with Solar Energy Systems
After strict compatibility testing, THS15 supports most mainstream 48V solar inverters, reducing installation complexity and improving system integration efficiency.
It can be widely used in:
Solar PV energy storage systems
Hybrid solar battery systems
Backup power solutions
Off-grid energy storage systems
Commercial and industrial ESS applications
International Certifications for Global Distribution
THS15 has passed international certifications including CE, UN38.3, and MSDS, meeting global transportation and market requirements for lithium battery products.
These certifications ensure safer international shipping by sea and air and support overseas distributors in expanding their energy storage business.

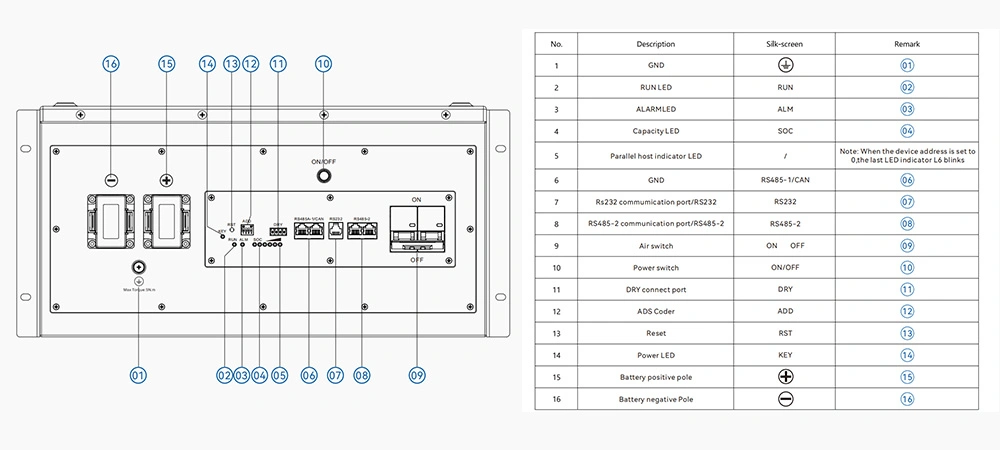

Connector definition
Application Scenarios
Residential Solar Energy Storage Store excess solar energy during the day and supply power at night, increasing solar self-consumption and reducing electricity costs.
Home & Commercial Backup Power Provide reliable backup energy during grid outages to keep essential loads operating.
Off-Grid Energy Systems Provide stable and clean power for remote cabins, RVs, boats, and other independent power applications.
Commercial & Industrial Energy Storage (C&I ESS) Support peak shaving, load shifting, and energy cost management for businesses.
Telecom Backup Power Provide reliable long-life backup power solutions for 4G/5G communication base stations and network equipment.
Microgrid Energy Storage Serve as a core battery storage unit for microgrids, improving renewable energy utilization and grid stability.
OEM/ODM Customization Services
AnengJI provides professional OEM/ODM LiFePO4 battery customization services for global distributors, brand owners, and energy storage solution providers.
Available customization options include:
Logo printing and branding
Customized product labels and nameplates
Battery parameter adjustment
Communication protocol customization
Product appearance design
Export packaging solutions
We also provide technical documents, installation guidance, and professional support to help customers quickly deploy their energy storage products.
Warranty & After-Sales Service
Warranty Period: 12 months from the shipment date.
Warranty Coverage: Covers manufacturing defects and material quality issues under normal operating conditions.
Not Covered: Damage caused by improper operation, incorrect wiring, overload, unauthorized modification, accidents, or unsuitable installation environments.
Service Commitment: AnengJI provides lifetime technical support and professional after-sales service. For any product quality issues, our technical team will respond within 24 hours and provide effective solutions.
Contact AnengJI today for pricing, datasheets, and sample testing of our 48V 280Ah LiFePO4 rack mount battery solutions.
Specifications
Item
Details
Model
THS15
Battery Type
LiFePO4
Cell Configuration
16S1P
Nominal Voltage
51.2V
Nominal Capacity
280Ah
Rated Energy
14.33kWh
Cycle Life
≥6000 cycles (80% DOD, 25℃)
Charging Voltage
57.6V
Discharge Cut-off Voltage
40.0~44.0V
Max Charge Current
200A
Max Discharge Current
200A
Communication
CAN / RS485 / RS232
Bluetooth
Built-in
Dimension
482×710×235mm
Net Weight
119.0kg±0.5kg
Working Temperature
Charge: 0~55℃; Discharge: -20~55℃
Protection Class
IP21
Certifications
CE, UN38.3, MSDS
Product FAQs
Is this battery compatible with solar inverters?
Yes. The THS15 supports CAN/RS485/RS232 communication and is compatible with most 48V solar inverter systems for residential and commercial energy storage applications.
How many batteries can be connected in parallel?
The THS15 supports up to 16 batteries connected in parallel for flexible capacity expansion.
How long does this LiFePO4 battery last?
The battery provides ≥6,000 cycles at 80% DOD with a designed lifespan of over 10 years.
Do you offer OEM/ODM services?
Yes. We provide OEM/ODM customization, including logo, labels, packaging, BMS settings, and appearance design.
What is this battery used for?
It is widely used for solar storage, backup power, off-grid systems, telecom backup, and commercial ESS applications.
