Product Features

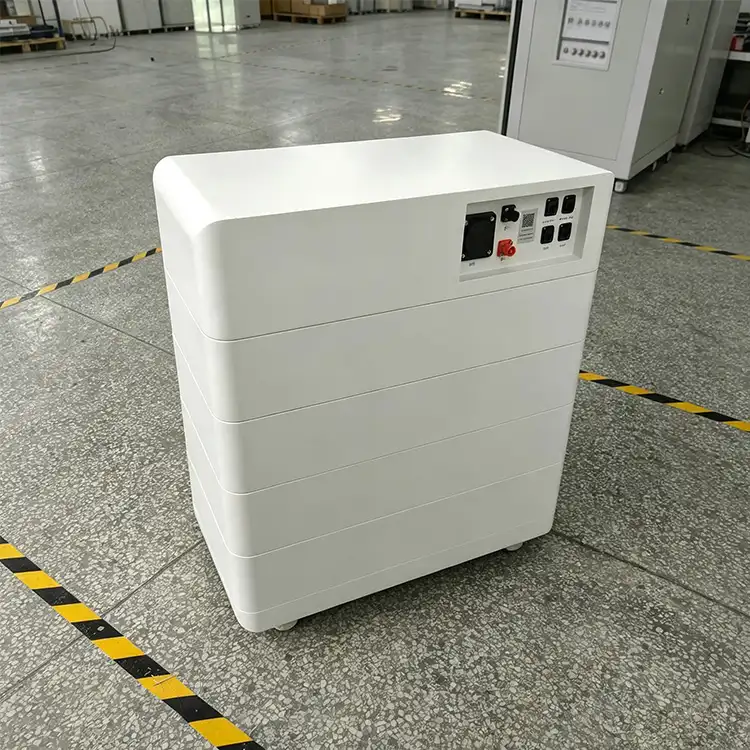

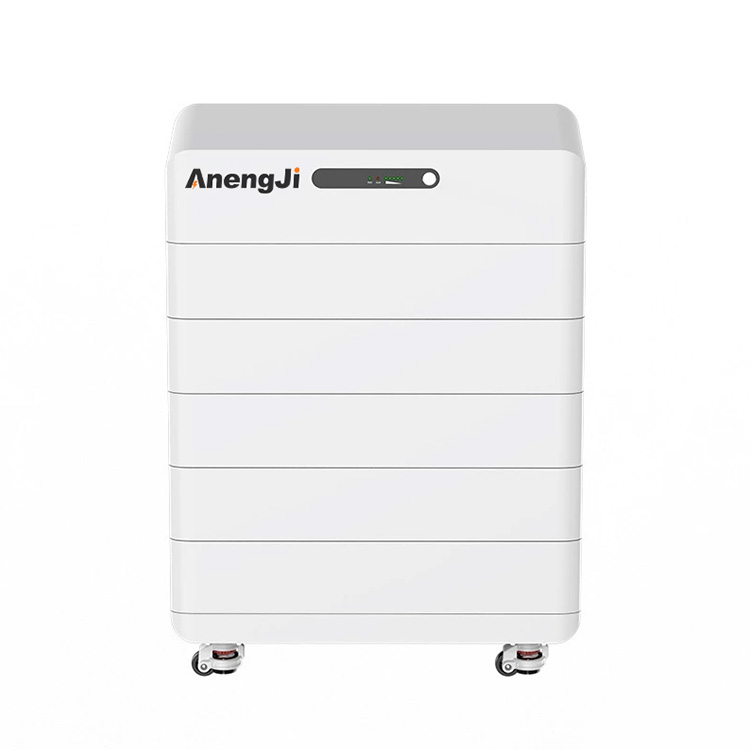

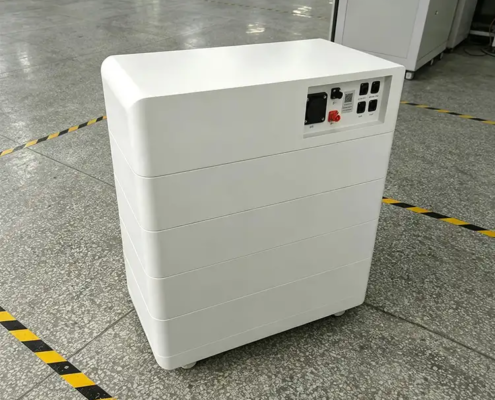

High Voltage Stackable LiFePO4 Battery is a high-performance DC energy storage system designed for modern residential solar energy storage applications. Covering a wide operating voltage range from 102.4V to 819.2V, this modular battery system adopts a standardized stackable architecture, combining intelligent controllers and battery modules to achieve efficient high-voltage operation.
With a scalable capacity range from 5kWh to 40kWh, the Stackable Home Energy Storage Battery allows homeowners to select the right configuration based on actual electricity consumption. From compact residential solar storage systems to larger home backup power solutions, users can easily expand capacity through additional battery modules for flexible, future-ready energy upgrades.
The system supports high-voltage single-phase and three-phase hybrid inverters, making it suitable for solar self-consumption, peak shaving, and backup power applications. Equipped with an intelligent Battery Management System (BMS) and compatible with high-performance PCS (Power Conversion System), it ensures safe, stable, and efficient energy management.
Featuring premium-grade Lithium Iron Phosphate (LiFePO4) battery cells and a modular stackable design, Anengji high voltage home battery storage system provides easy installation, flexible expansion, and reliable performance, making it an ideal solution for residential users and small commercial energy storage projects.
Using premium Lithium Iron Phosphate (LiFePO4) cells, the system integrates an intelligent BMS with multiple protection functions, including overcharge, over-discharge, over-current, short circuit, over-temperature, low-temperature protection, and thermal runaway warning, ensuring safety from cell level to system level.
With ≥6000 cycles at 80% depth of discharge (DOD) and a designed lifespan of over 10 years, this high voltage solar battery significantly reduces lifecycle energy costs and provides reliable long-term value.
The modular energy storage system supports capacity expansion from 5kWh to 40kWh. Users can select the required battery capacity according to household energy needs and upgrade the system anytime without major additional investment.
The standardized stackable structure enables quick installation, simple module connection, and flexible system expansion. The plug-and-play design reduces installation complexity, labor costs, and commissioning time.
Integrated with an intelligent Battery Management System (BMS) and Energy Management System (EMS), the battery supports remote monitoring and OTA upgrades. Users can check system status through a mobile APP for smarter energy management.
Designed for reliable operation in various environments, the system supports a working temperature range from -20℃ to 55℃, making it suitable for both indoor and outdoor residential energy storage installations.
Compatible with mainstream high-voltage hybrid inverter brands, the system works with advanced PCS solutions to support solar self-consumption, peak shaving, and backup power operation modes.
Certified with IEC62619, CE, UN38.3, and MSDS, meeting international standards for transportation, installation, and global residential energy storage markets.

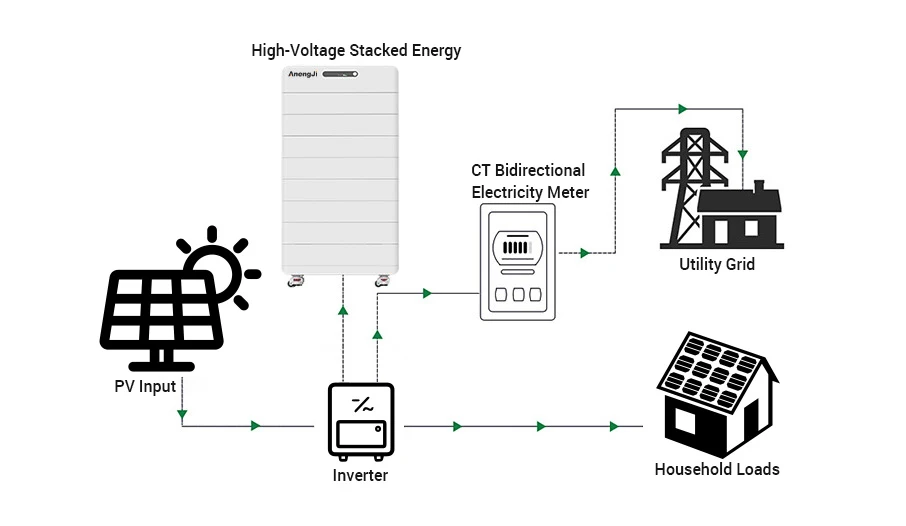

Stores excess solar energy generated during the day and supplies power at night or during peak demand periods, improving solar utilization and reducing electricity costs.
Charges during low electricity price periods and discharges during peak tariff periods, helping users optimize energy costs through time-of-use electricity management.
Automatically switches to battery power during grid outages, maintaining operation of essential household loads such as lighting, refrigerators, internet equipment, and other critical appliances.
Suitable for remote areas, islands, farms, and locations without reliable grid access, helping build independent and sustainable renewable energy systems.
Provides peak shaving, demand management, and emergency backup power for small factories, offices, retail stores, and other commercial facilities to reduce operating costs.
Bulk Order Support
The standard minimum order quantity (MOQ) starts from 2 units, supporting sample orders for product testing, quality verification, and market evaluation.
OEM/ODM Customization Service
We provide comprehensive OEM/ODM lithium battery solutions for global distributors and brand customers, including logo printing on batteries and packaging, customized labels, parameter adjustments, and customized enclosure designs.
Flexible Payment Terms
Standard payment terms: 30% T/T deposit and 70% balance before shipment. Long-term partners can negotiate customized payment solutions based on cooperation requirements.
Warranty Period:
12 months from the shipment date.
Warranty Coverage:
Covers manufacturing defects and material quality issues under normal operating conditions.
Not Covered:
Damage caused by improper operation, incorrect wiring, overload, unauthorized modification, accidents, or unsuitable installation environments.
Service Commitment:
AnengJI provides lifetime technical support and professional after-sales service. For any product quality issues, our technical team will respond within 24 hours and provide effective solutions.
Contact AnengJI today for pricing, datasheets, and sample testing of our LiFePO4 rack mount battery solutions.
| Model | THS5 | THS10 | THS15 | THS20 | THS25 | THS30 | THS35 | THS40 |
|---|---|---|---|---|---|---|---|---|
| Nominal Voltage (V) | 102.4 | 204.8 | 307.2 | 409.6 | 512 | 614.4 | 716.8 | 819.2 |
| Rated Capacity (Ah) | 50 | |||||||
| Rated Energy (kWh) | 5.12 | 10.24 | 15.36 | 20.48 | 25.6 | 30.72 | 35.84 | 40.96 |
| Discharge Cut-off Voltage (V) | ≤92.8 | ≤185.6 | ≤278.4 | ≤371.2 | ≤464 | ≤556.8 | ≤649.6 | ≤742.4 |
| Max. Charge / Discharge Current (A) | 50 | |||||||
| System Dimensions (mm) | 788×388×474 | 788×388×621 | 788×388×768 | 788×388×913 | 788×388×1058 | 788×388×1203 | 788×388×1350 | 788×388×1497 |
| System Weight (kg) | 75 | 125 | 175 | 225 | 275 | 325 | 375 | 425 |
| Round-trip Efficiency | 95% | |||||||
| Design Life (25℃) | 10 Years | |||||||
| Cycle Life | ≥6000 Cycles (90% DOD, 25℃) | |||||||
| Operating Temperature | Charge: 0℃~55℃; Discharge: -20℃~60℃ | |||||||
| Storage Temperature | ≤3 Months: -10℃~45℃; ≤6 Months: -10℃~35℃; ≥1 Year: 0℃~25℃ | |||||||
| IP Rating | IP20 | |||||||
| Protection Class | I | |||||||
What is a High Voltage Stackable LiFePO4 Battery?
A High Voltage Stackable LiFePO4 Battery is a modular home energy storage solution that combines multiple battery modules in series to achieve higher voltage operation and flexible capacity expansion.
What capacity options are available for this stackable solar battery?
This high voltage stackable LiFePO4 battery supports flexible configurations from 5kWh to 40kWh, allowing homeowners to select the right capacity according to their energy requirements.
Can this battery work with solar hybrid inverters?
Yes. The system is compatible with mainstream high voltage hybrid inverters and supports solar self-consumption, backup power, and energy management applications.
How long is the lifespan of this LiFePO4 home battery?
The battery provides more than 6000 cycles at 80% DOD and offers a designed service life of over 10 years under proper operating conditions.
Do you provide OEM/ODM services for stackable lithium batteries?
Yes. Anengji provides OEM/ODM customization services including branding, packaging, labels, and product configuration adjustments.
