Grid Scale Battery Storage: Complete Utility BESS Guide

Introduction

If you have ever stood on a sub-station site at 2:00 AM in the middle of winter, watching high-voltage breakers trip while a wind farm 20 miles away gets throttled back to zero, you know the absolute frustration of modern grid management. The fundamental problem with traditional electrical grids isn’t a lack of generation—it’s a lack of temporal alignment. Generation and demand must match down to the exact millisecond, or the entire physical asset network collapses. Grid scale battery storage is no longer just a luxury compliance tool or an experimental line item for utility innovation teams.

It has rapidly evolved into the core structural backbone of global power transmission. According to market intelligence from Fortune Business Insights, the global grid-scale stationary battery storage market expanded past $300 billion in 2026, driven by unprecedented integration of solar and wind assets alongside the electrification of transport. Whether you are a utility asset planner trying to defer a $40M transmission line buildout or an Independent Power Producer (IPP) fighting negative daytime LMP (Locational Marginal Pricing) spikes, getting your BESS (Battery Energy Storage System) strategy wrong will destroy your Project IRR. This comprehensive guide walks through the real-world engineering, financial metrics, and operational trade-offs of deploying megawatt-hour energy storage today.

What Is Grid Scale Battery Storage?

When power system engineers talk about a grid scale battery storage system, we aren’t talking about backup generators or scaled-up commercial battery banks sitting behind a building meter. We are referring to front-of-the-meter (FTM) energy storage power plants connected directly to high-voltage transmission lines (69kV to 500kV) or primary distribution substations. These assets act as bidirectional power plants capable of absorbing hundreds of megawatt-hours of excess generation in real-time and releasing that energy back into the transmission infrastructure with sub-second response times.

Definition of Grid Scale Battery Storage

At its core, grid-scale storage decouples energy generation from instantaneous energy consumption. It operates as a flexible, fast-acting buffer for power utilities, transmission system operators (TSOs), and regional distribution companies.

• System Capacity Metrics: Multi-megawatt (MW) power ratings combined with multi-megawatt-hour (MWh) to gigawatt-hour (GWh) energy ratings.

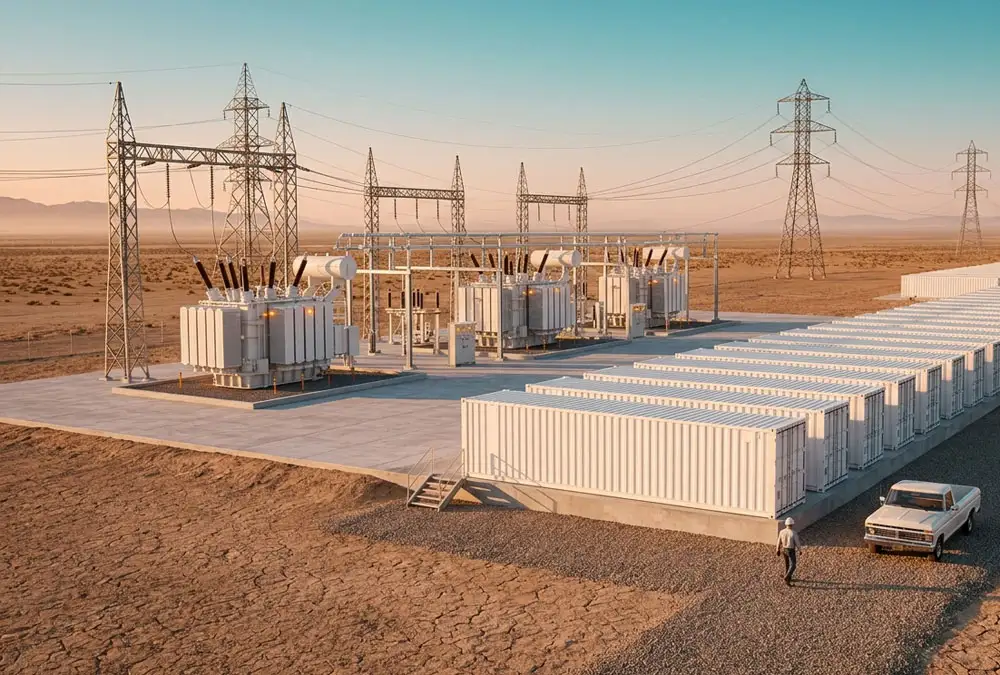

• Primary Point of Interconnection (POI): Transmission substations, distribution busbars, or direct high-voltage switchyards co-located at utility-scale solar and wind facilities.
• Operational Intent: Transmission congestion relief, spinning reserves, synthetic grid inertia, peak shifting, and black-start grid restoration.

Grid Scale Battery Storage vs Residential and Commercial Energy Storage

Scale changes everything in electrical engineering. As you step up from behind-the-meter (BTM) systems to front-of-the-meter utility assets, the protection schemes, control software, and grid interconnection standards change entirely. Here is how these platforms compare side-by-side:

How Does Grid Scale Battery Storage Work?

To understand how does grid scale battery storage work in a live transmission network, you have to stop thinking of a battery as a static generator and start viewing it as a high-speed energy reservoir. A modern installation operates as a fully automated, bidirectional power plant. When the grid has surplus electricity, the system acts as a massive industrial load, charging its chemical cells. When grid demand outstrips supply, it reverses current flow in fractions of a second, injecting power back into the transmission lines.

As highlighted in reports by WIRED, grid storage is quietly transforming the physics of utility management. Traditional thermal plants take hours to ramp up mechanical turbines, but electrochemical storage switches state in milliseconds. This provides clean, harmonic-free “synthetic inertia” that stops grid frequency drops before human dispatchers even notice the load surge.

Battery Charging Process

During off-peak demand hours—such as mid-day when solar arrays produce massive surpluses, or late at night during high wind events—the local system operator’s Automatic Generation Control (AGC) or SCADA network signals the BESS to absorb power. High-voltage power flows from the transmission busbar through a site step-down transformer, lowering voltage levels to match the internal AC operating voltage of the site’s power conversion units.

Energy Conversion Through PCS

Raw alternating current (AC) from the grid cannot enter electrochemical battery cells directly. This is where the Power Conversion System (PCS) takes over. The PCS consists of heavy-duty, bidirectional utility-scale inverters. During charging, the PCS rectifies AC power into precise direct current (DC) voltage to charge the battery strings. During discharge, the process reverses: the PCS converts DC energy back into tightly synchronized, low-distortion AC power matching the exact phase angle and frequency of the utility grid.

Intelligent Control Through EMS and BMS

Operating a 50MW / 200MWh site requires an integrated control architecture running across multiple localized software layers:

• Battery Management System (BMS): The low-level safety guardian. It continuously samples every individual cell voltage, module temperature, and rack current thousands of times per minute. It manages State of Charge (SOC) balancing and instantly opens DC contactors if thermal limits are exceeded.
• Energy Management System (EMS): The master site orchestrator. The EMS runs market optimization algorithms, interfaces with utility SCADA via DNP3 or Modbus TCP protocols, manages auxiliary cooling loads, and calculates real-time system degradation constraints.

Grid Scale Battery Storage Applications in Modern Power Systems

Why are grid operators and private developers investing heavily in large scale energy storage system projects globally? Because BESS assets act as multi-tool solutions for electricity grid challenges.

Renewable Energy Integration

Solar arrays hit maximum generation around 1:00 PM, while residential and commercial grid loads peak around 7:00 PM as people arrive home. Wind generation frequently surges late at night when electricity demand drops to daily lows. This timing mismatch causes severe curtailment—forcing grid operators to order clean energy plants to shut down to prevent feeder overloading. Deploying large scale battery storage solutions for renewable energy fixes this structural flaw. The battery captures curtailment-bound electrons during periods of high generation and shifts that clean energy into evening peak market windows.

Frequency Regulation and Grid Stabilization

Electrical grids require tight frequency maintenance—exactly 60 Hz in North America or 50 Hz in Europe. If a major fossil plant trips offline unexpectedly, system frequency collapses rapidly, risking widespread blackouts. Traditional thermal plants take 10 to 30 minutes to ramp up replacement capacity. A frequency regulation battery storage site detects sub-Hertz frequency deviations and injects full rated megawatt capacity into the grid within 50 to 100 milliseconds, stabilizing grid parameters immediately.

Peak Shaving and Energy Arbitrage

Wholesale electricity prices fluctuate drastically throughout the day based on supply and demand dynamics. A peak shaving energy storage installation executes automated financial arbitrage: buying wholesale power when market prices are low or negative, and discharging power when locational marginal prices spike during extreme demand periods. This practice levels peak demand curves and lowers wholesale power costs across regional markets.

Backup Power and Grid Resilience

Extreme weather events, wildfires, and equipment failures can knock out major utility switchyards. Modern grid connected battery storage stations feature advanced grid-forming (GFM) inverters capable of “black start” operation. Rather than relying on external grid voltage signals to operate, the BESS generates its own stable voltage waveform, providing the initial power required to re-energize dead transmission lines and restart surrounding regional power plants.

Key Components of Grid Scale Battery Storage Systems

A turnkey containerized grid scale battery storage system is an engineered industrial power station housing high-voltage electrochemistry, liquid thermal loops, advanced power electronics, and automated fire safety networks.

Battery System

The battery system serves as the foundational chemical core. While early utility deployments relied heavily on Nickel Manganese Cobalt (NMC) chemistries due to energy density, modern BESS projects have transitioned almost universally to Lithium Iron Phosphate (LiFePO4 or LFP). LFP chemistry offers superior chemical stability, zero cobalt supply chain risk, significantly higher thermal runaway resistance, and exceptional cycle performance (often exceeding 8,000 to 10,000 cycles at 80% Depth of Discharge).

Battery Management System (BMS)

A industrial multi-tiered BMS monitors operational safety across three distinct hardware levels: the Cell Level (measuring individual voltages and temperatures), the Rack Level (managing DC contactors and string balancing), and the System Level (aggregating rack data and communicating with the central site controller).

Power Conversion System (PCS)

The PCS inverter manages bidirectional power flow between DC battery strings and AC transformer stations. Utility-scale PCS units utilize Silicon Carbide (SiC) power semiconductors, offering round-trip efficiency (RTE) metrics above 98.5% while providing reactive power support (VAR) to the grid even when the battery is idle.

Energy Management System (EMS)

The EMS acts as the centralized digital brain. It continuously processes market pricing signals, optimizes charge/discharge profiles to minimize electrochemical degradation, manages HVAC auxiliary loads, and coordinates safety shutdowns during fault conditions.

Thermal Management and Fire Safety System

Thermal control directly impacts both system lifespan and site safety. Traditional forced-air HVAC cooling systems are being replaced by high-efficiency liquid cooling cold-plate architectures. By circulating glycol-water coolant directly against battery module plates, liquid cooling maintains internal cell temperature variations within a tight ±2°C window. Fire safety incorporates early-stage off-gas detection (sensing volatile organic compounds prior to thermal runaway), automated deflagration venting panels, gas-tight compartmentation, and clean-agent NFPA 15/18 compliant fire suppression systems.

Advantages of Grid Scale Battery Storage Systems

Deploying a megawatt battery storage system unlocks financial, operational, and structural benefits for grid stakeholders:

• Eliminating Renewable Curtailment: Converts wasted solar and wind capacity into firm, dispatchable power assets.
• Enhancing Grid Reliability: Delivers sub-second frequency response, synthetic inertia, and localized voltage support.
• Unlocking Multiple Revenue Streams: Allows IPPs to stack revenue from frequency regulation markets, capacity availability payments, and wholesale price arbitrage simultaneously.
• Transmission & Distribution Deferral: Placing a battery storage power plant at a congested substation defers multi-million-dollar line upgrades by serving local peak loads directly.

Grid Scale Battery Storage Deployment Considerations

Developing a successful utility BESS project requires navigating complex engineering design, permitting, and grid-code requirements long before equipment arrives on site.

Battery Capacity and System Sizing

System sizing requires specifying two core metrics: power rating in megawatts (MW) and energy capacity in megawatt-hours (MWh). The ratio between energy and power defines system duration. For example, a 100 MW / 400 MWh asset is classified as a 4-hour duration system. While 2-hour systems work well for fast frequency regulation markets, 4-hour to 8-hour duration systems are increasingly required by grid operators for peak capacity firming and solar energy time-shifting.

Site Selection and Grid Connection

Sizing the physical asset is only half the battle. EPC contractors must evaluate physical land topography, soil load-bearing capacities for heavy container pads, ambient temperature extremes, flood zones, and local fire department access routes. Crucially, securing interconnection approval from regional TSOs requires detailed steady-state, short-circuit, and dynamic stability power flow studies.

Safety Standards and Regulations

Permitting a utility storage asset requires strict compliance with international safety codes. Systems must pass full-scale thermal runaway fire testing under UL 9540A standards. Engineering designs must comply with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems), local building codes, and international electrical safety standards like IEC 62933.

Grid Scale Battery Storage Cost: What Determines the Investment?

Evaluating the true grid scale battery storage cost per MWh requires looking beyond initial capital expenditures (CAPEX) to analyze the full Levelized Cost of Storage (LCOS) over a 15-to-20-year operational life.

Key CAPEX Components

• Equipment Hardware (60% – 70% of CAPEX): LFP battery racks, BMS control architecture, utility PCS inverters, liquid cooling chillers, step-up transformers, and fire safety systems.
• Balance of Plant & Civil Works (15% – 20% of CAPEX): Concrete foundation pads, underground duct banks, high-voltage cabling, perimeter security, and switchyard equipment.
• Soft Costs & Interconnection (15% – 20% of CAPEX): Environmental permitting, grid interconnection studies, engineering design, legal contracts, and commissioning testing.

Long-Term Economic Benefits & Revenue Stacking

A well-sited grid scale battery energy storage system (BESS) generates multiple revenue streams simultaneously:

1. Wholesale Market Energy Arbitrage: Capturing profit margins from charging during low-cost daytime power periods and discharging during high-cost peak evening windows.
2. Ancillary Services Revenues: Earning high-margin service payments for sub-second frequency regulation, spinning reserves, and reactive voltage support.
3. Capacity Market Contracts: Securing fixed, multi-year capacity payments from grid operators for guaranteeing standby power availability during extreme weather events.

Grid Scale Battery Storage in Europe: Supporting the Energy Transition

Europe serves as a global proving ground for utility-scale battery integration. As traditional coal and nuclear assets retire across the UK, Germany, and Southern Europe, transmission networks face structural grid congestion and extreme power price volatility. Grid-scale battery systems are filling this flexibility gap. By storing excess North Sea wind energy and Mediterranean daytime solar generation, BESS installations smooth out cross-border power flows, reduce expensive transmission bottlenecks, and lower regional reliance on natural gas peaker plants.

Future Trends of Grid Scale Battery Storage

Where is battery energy storage technology heading over the next decade?

Advanced Chemistries and Solid-State Systems

While lithium ion battery grid storage dominates market share today, next-generation chemistries are advancing rapidly. Sodium-ion (Na-Ion) batteries are entering early utility field trials, offering lower material costs and strong cold-weather performance. Meanwhile, non-flammable solid-state batteries promise higher energy density and improved safety profiles for dense urban substation sites.

AI-Powered EMS & Algorithmic Dispatch

Artificial Intelligence is transforming asset management software. Machine learning models analyze weather forecasts, historical load patterns, and real-time market pricing to automate charge and discharge cycles, maximizing financial yields while preserving cell health.

Hybrid Solar-Plus-Storage Power Infrastructure

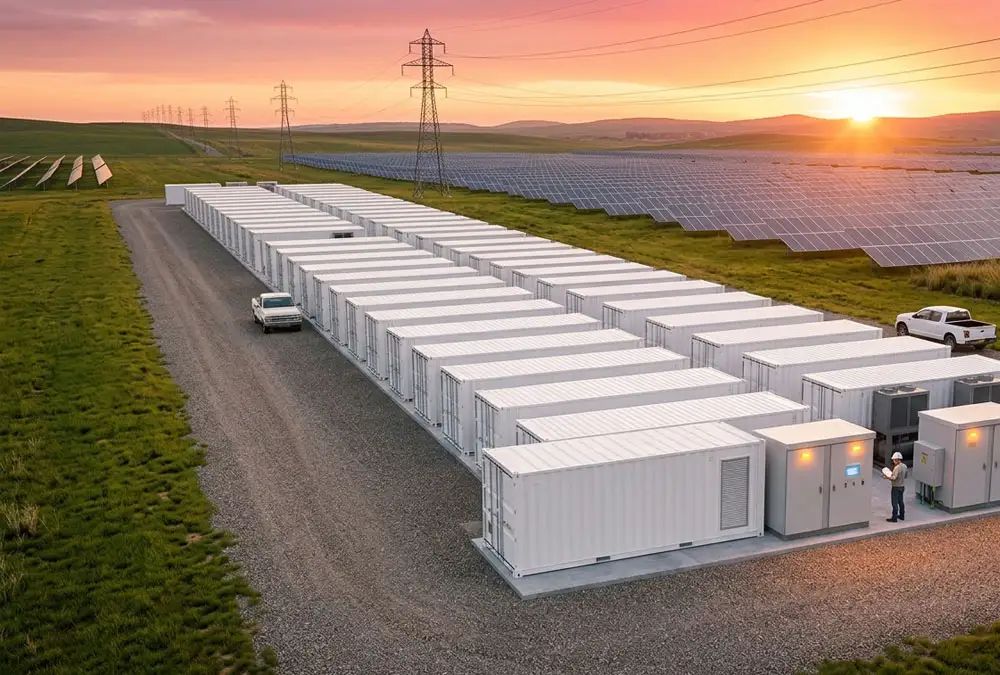

Co-located hybrid assets (solar-plus-storage or wind-plus-storage) are fast becoming the default deployment model. Sharing substation transformers, land, and grid connection points slashes project capital costs while eliminating renewable curtailment at the source.

Why Choose AnengJi Power Grid Scale Battery Storage Solutions?

Deploying utility storage requires working with an equipment partner that balances hardware design with bankability guarantees. AnengJi Power provides industrial BESS platforms built specifically for demanding power environments.

Advanced LFP Technology & Safety Architecture

AnengJi BESS enclosures utilize Tier-1 LFP prismatic cells paired with direct-plate liquid cooling loops. Multi-tier BMS tracking monitors system health in real-time, holding cell temperature variances under 2.5°C to maximize lifespan and maintain high round-trip efficiency.

Modular Containerized BESS Systems

From 100 kWh commercial enclosures to multi-megawatt 20ft and 40ft container blocks, our solutions offer modular expansion. Pre-commissioned factory integration reduces field installation schedules, lowers site labor costs, and minimizes grid connection risks.

End-to-End Project Engineering Support

AnengJi supports project developers, utilities, and EPC contractors across the full asset lifecycle. We deliver custom LCOS financial modeling, grid SCADA interface engineering, turnkey container manufacturing, and long-term O&M maintenance service plans.

Key Takeaways: Grid Scale Battery Storage Explained

Frequently Asked Questions (FAQ)

What is grid scale battery storage?

Grid scale battery storage refers to large-capacity battery energy storage systems (BESS) connected directly to utility transmission or distribution power lines. They absorb excess generation during low-demand periods and release power when grid demand surges.

How does grid scale battery storage work?

It works by absorbing AC power from the grid during low-cost or high-generation periods, converting it to DC power via a PCS inverter, and storing it in chemical cells. Controlled by EMS software, it converts stored DC energy back into AC electricity when the grid needs capacity or frequency support.

How large are grid scale battery storage systems?

Utility-scale installations range from several megawatts (MW) to hundreds of megawatts, with total energy capacity measured in megawatt-hours (MWh) or gigawatt-hours (GWh).

What batteries are used in grid scale energy storage?

Lithium Iron Phosphate (LiFePO4) batteries are the utility industry standard due to their high safety profile, excellent thermal stability, non-toxic chemistry, and long cycle life.

Is grid scale battery storage profitable?

Yes. Project owners generate revenue by stacking services, including wholesale energy arbitrage, fast frequency regulation payments, capacity availability contracts, and curtailment mitigation.
