22kW / 44kW Integrated AC EV Charger – Metal Floor-Standing Level 2 Dual Gun Charging Station | Smart Commercial Solution

Charger Features

  • High-power 22kW / 44kW integrated AC EV charger for commercial and fleet applications.
  • All-in-one metal cabinet with IP54 protection for outdoor use.
  • Dual-gun design for simultaneous EV charging.
  • Compatible with J1772 (Type 1), IEC 62196 (Type 2), and GB/T 20234 connectors.
  • 4.3-inch color touch screen and LED indicator for easy operation.
  • Smart charging via OCPP 1.6J with Ethernet, 4G, or Wi-Fi connection.
  • Built-in safety protection for reliable performance.
  • Ideal for parking lots, fleets, residential communities, and commercial buildings.
Inquire Now
Product OverviewSpecificationsFAQs
PreviousNext

Product Overview

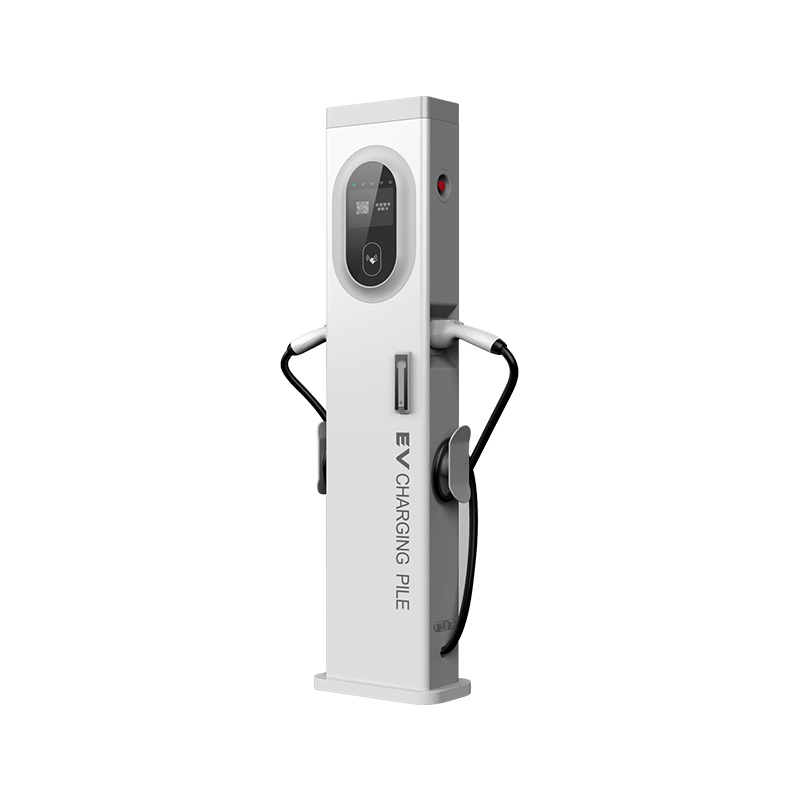

22kW / 44kW Integrated AC EV Charger (Metal Type)

Reliable and Powerful Level 2 Commercial Charging Solution

The 22kW / 44kW Integrated AC EV Charger is built for high performance and long-term use. Its all-in-one floor-standing metal housing is designed for outdoor and semi-public environments, including parking lots, business centers, fleet depots, and residential communities.

Dual Gun Charging for Maximum Efficiency

With dual charging connectors, this AC charging station can power two EVs simultaneously.

  • 22kW model: Supports 2×11kW or single 22kW charging.

  • 44kW model: Supports 2×22kW simultaneous charging.

This flexibility makes it ideal for high-traffic charging locations that need reliable and efficient charging capacity.

Easy-to-Use Smart Interface

The charger features a 4.3-inch high-brightness touch screen and an LED indicator strip. Users can easily check real-time charging status and control the device with a few taps. It supports OCPP 1.6J protocol, enabling:

  • Remote monitoring

  • User authentication

  • Billing and payment integration

  • Dynamic load management

Universal Compatibility with Major EV Models

The charger works with J1772 (Type 1), IEC 62196 (Type 2), and GB/T 20234 connectors. It’s compatible with most EV brands worldwide, including Tesla (with adapter), Volkswagen, BYD, Hyundai, BMW, and more.

Advanced Safety and Durability

Built-in protection ensures safe and stable operation in any environment:

  • Overvoltage / Undervoltage

  • Short-circuit & Overload protection

  • Ground fault & Leakage protection

  • Overtemperature protection

  • Emergency stop function

With IP54 protection and a wide working temperature range, this unit is made to perform in tough outdoor conditions.

Smart, Scalable EV Charging Infrastructure

Whether you manage a commercial property, operate a charging network, or run a vehicle fleet, this integrated AC charger provides:

  • Fast and efficient charging

  • Smart energy management

  • High compatibility

  • Long-term reliability

Upgrade your charging infrastructure with a future-proof, Level 2 AC charging solution designed for both performance and flexibility.

Specifications

Product NameAC Charging Station
Rated output power22kW44kW
Overall dimensions (mm)300*150*1400mm
Rated input and output current16A+16A32A+32A
AC power supply380Vac±20%;50±10Hz
Human-computer interaction4.3-inch high-brightness color touch screen,LED indicator strip
Working EnvironmentAltitude:≤2000m;Temperature:-20°C~+50°C
Communication protocolOCPP1.6J
Charging methodSwipe card, scan code
Networking methodsEthernet, 4G,WIFI
Operation mode/
Executive standardIEC 61851-1:2017;1EC 62196-2:2016
Charging cable lengthStandard 5 meters(optional)
Protection gradeIP54
Protection functionOvervoltage protection, undervoltage protection, overload protection, short-circuit protection, ground protection, overtemperature protection, communication fault protection, emergency stop protection, and leakage protection.

Product FAQs

The 22kW model can charge one vehicle at 22kW or two vehicles at 11kW each. The 44kW model supports 2×22kW simultaneous charging, which is ideal for busy commercial charging stations and fleet depots. Both models provide reliable power and fast charging speeds.

Yes. It supports J1772 (Type 1), IEC 62196 (Type 2), and GB/T 20234 connectors. This covers nearly all EVs on the market, including Tesla (with adapter), BMW, BYD, Volkswagen, Hyundai and more.

Absolutely. The IP54-rated metal housing is weather-resistant and built to handle harsh conditions. It works in temperatures from -20°C to +50°C, making it perfect for parking lots, highways, service stations, or residential communities.

Using OCPP 1.6J protocol, the charger can connect to charging management systems. Operators can track real-time data, set charging prices, monitor power usage, schedule charging, and manage users remotely. This makes it an ideal solution for EV charging networks.

Very safe. It includes multiple protection mechanisms:

  • Overvoltage and undervoltage protection

  • Overcurrent and overload protection

  • Ground fault and leakage protection

  • Short-circuit and emergency stop protection

  • Overtemperature protection

These ensure safe and stable charging for every session.

With up to 44kW dual-gun output, it can deliver a fast charging experience. For example, it can add approximately 70–80 km (43–50 miles) of range per hour, depending on the vehicle’s onboard charger. This makes it ideal for commercial EV charging stations.

This is an integrated floor-standing EV charger, meaning all components are built into one durable housing. Installation is simple and efficient, with standard accessories included. It’s a great option for property developers, fleet operators, and charging station networks.

Yes. With OCPP connectivity, multiple chargers can be connected to a central management platform. This allows operators to control pricing, analyze usage, and optimize energy allocation across multiple sites.

About Level 2 EV Chargers

Level 2 charging stations are a common sight in public parking lots, office parks, retail centers, and residential communities. They’re the go-to choice for daily charging—whether it’s for a single EV at home or a fleet at work.

Unlike Level 1 chargers, which use a standard 120V outlet, Level 2 chargers run on 220V single-phase or 380V three-phase AC power. They deliver 7kW to 22kW of output, making them three to five times faster. For most vehicles, that means a full charge in roughly 3 to 8 hours, depending on the battery size. It’s faster, more practical, and fits seamlessly into daily routines.

Ready for the Road Ahead

EV batteries are getting bigger—60 to 100 kWh is becoming the norm. Bigger batteries need faster charging. Upgrading to a Level 2 charger isn’t just about convenience today. It’s a smart investment that keeps your charging setup future-ready, without constant upgrades or replacements.
