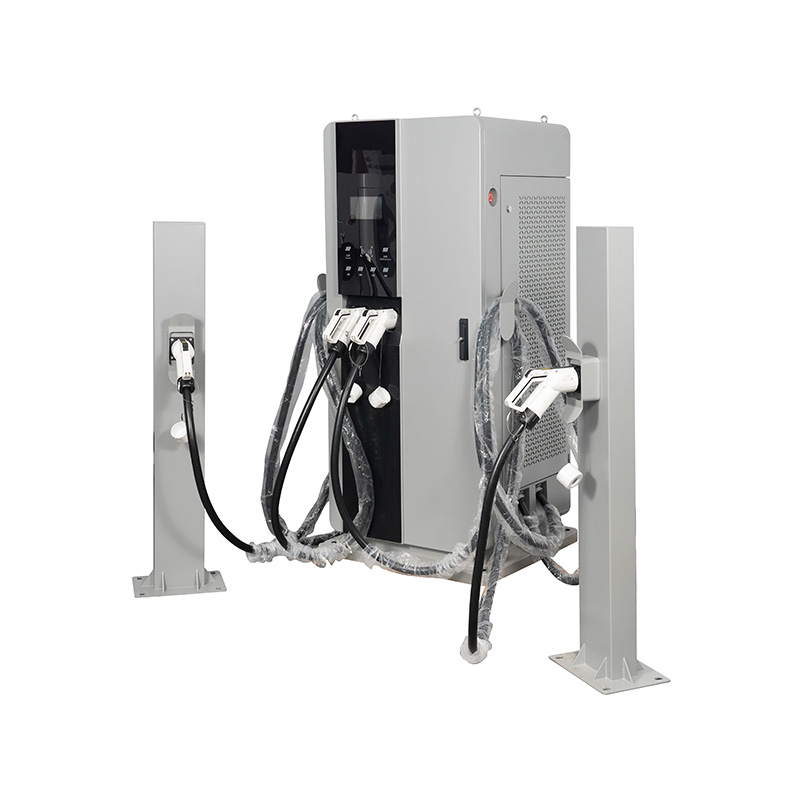

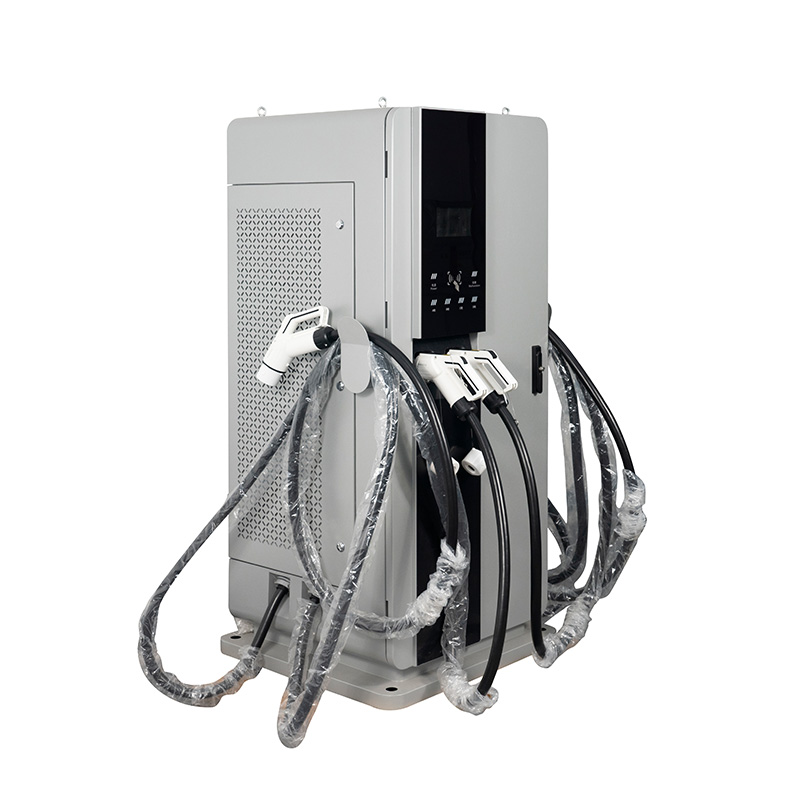

High-Efficiency DC Fast Charging Station (160kW–320kW, 4-Gun Design)

Product Features

  • Charge four vehicles at once with intelligent scheduling
  • 160–320kW flexible output with dynamic power distribution
  • Ultra-wide 200–2000V voltage for 99% EV compatibility
  • 250A max output per connector for true fast charging
  • Lower CAPEX & OPEX—no transformer upgrade required
  • Durable IP54 design with three-stage filtration and low maintenance
Inquire Now
Product OverviewSpecificationsFAQs
PreviousNext

The High-Efficiency Multi-Vehicle Charging Solution

Engineered for Small Charging Hubs

Product Overview

This is the innovative DC charging solution that changes the economics of small charging stations. Our single-cabinet design allows one unit to charge up to four vehicles simultaneously. By utilizing Dynamic Power Distribution technology, we significantly drive down operating costs for site owners.

Compared to buying four traditional, independent charging stations, this single device saves you money on equipment purchase, installation, and ongoing maintenance. Plus, you can skip the costly transformer upgrade; the unit plugs directly into standard 380V industrial power.

The total output is flexible, adjusting between 160kW and 320kW (supporting flexible combinations of 40kW, 80kW, 120kW, or 160kW). We use a “First-In, Fully-Charged” strategy to guarantee fast turnaround and high utilization of your most popular stalls.

It’s the perfect fit for a variety of locations, including: community commercial centers, shared corporate or campus charging points, gas station conversions, and highway service plazas.

Product Features

【Smart Design】

  • Intelligent Scheduling, Charging, and O&M: Streamline your management processes and simplify operations.

【High Efficiency & Reliability】

  • Ultra-Wide Voltage Range: Covers 99% of all EV models on the market, ensuring broad compatibility.
  • Innovative Zoned Filtration System: Enhances weather resistance and reduces the frequency of component failure.

【Energy Saving & Low Noise】

  • Ultra-Low Standby Power: Minimal energy waste when idle.
  • Smart Noise Reduction Technology: Achieve silent, safe operation.

【Safety Protection】

  • Real-Time Monitoring and Alert Mechanism: Immediate warnings and the ability to control and trace incidents effectively reduce safety risks.

Product Highlights

Matrix Scheduling: Kickstarting the New Era of High-Efficiency Charging

  • Flexible Power Distribution: Optimizes the use of power modules.
  • Maximum Single-Gun Output: Delivers powerful charging with up to 250A maximum current.

High Reliability & Low Maintenance Costs

  • Three-Stage Filtration: Self-cleaning design significantly cuts down on maintenance requirements.
  • Potted Module Treatment: Reduces the failure rate by 80%, boosting long-term operational stability.

Extensive Compatibility and Configuration Flexibility

  • 99% EV Compatibility: Ensures the broadest market reach and maximizes your return on investment (ROI).

Lower Costs, Higher Operational Benefits

  • Reduced Initial Investment: Eliminates the need for large-capacity transformers.
  • Superior Energy Efficiency: Whole-machine power efficiency is over 95%. With Silicon Carbide (SiC) modules and intelligent scheduling, peak efficiency exceeds 96%, drastically cutting your electricity bills.

Choose our charging solution

not only will you enjoy more efficient service, but you’ll also effectively lower your costs. It is your ideal choice for building a new charging site or upgrading an existing one.

Specifications

Product NameAll-in-One Four-Gun DC Fast Charging Station
Specifications160kW240kW320kW
Rated Power160 kW240 kW320 kW
Input VoltageAC 380V ±20%
Output VoltageDC 200–2000V / AC 380V
Output CurrentUp to 250A per connector
Cooling MethodForced air cooling
Charging ModesRFID card charging / QR code charging / Password charging
Protection RatingIP54
Operating Temperature-20°C to +50°C
Altitude< 2000m
Product Dimensions750 × 735 × 1820 mm
Operating Humidity5%–95% (non-condensing)

Product FAQs

About Level 3 DC Fast Charging

Level 3 DC fast charging is the quickest way to power up an electric vehicle today. Unlike Level 2 AC chargers, which can take hours, a DC fast charger can bring most EVs from 10% to 80% in just 15 to 40 minutes under ideal conditions. It’s the go-to choice for locations where time matters — highways, gas stations, logistics hubs, and other busy commercial sites.

Why Choose Level 3 DC Fast Charging?

Lightning-fast charging:
With output power ranging from 30kW to 480kW (most common models are 30–360kW), these chargers drastically reduce downtime and get vehicles back on the road quickly.

High efficiency for commercial use:
In about 30 minutes, most vehicles can gain 125–300 miles (200–480 km) of driving range — perfect for long-distance routes or fleet operations where every minute counts.

A business advantage:
Adding DC fast chargers can turn your gas station, shopping center, or hotel into a destination. Drivers stay longer, spend more, and associate your brand with innovation and sustainability.

Where Level 3 Chargers Fit Best

Because of their high power draw and the need for specialized installation, DC fast chargers are typically installed at commercial sites with strong grid capacity — not at private homes or standard office buildings. They’re built for places that serve many vehicles daily and require dependable uptime.

DC Fast Charging Solutions from AnengJi

AnengJi offers a complete range of commercial DC fast charging solutions, supporting CCS, CHAdeMO, and GB/T standards to serve all major EV models worldwide.
Power options span from 30kW up to 480kW, allowing businesses and operators to scale according to site demand.

Our chargers are engineered for long-term reliability, network compatibility, and easy integration — helping global partners build high-performance, high-utilization EV charging stations that keep drivers moving and businesses growing.
