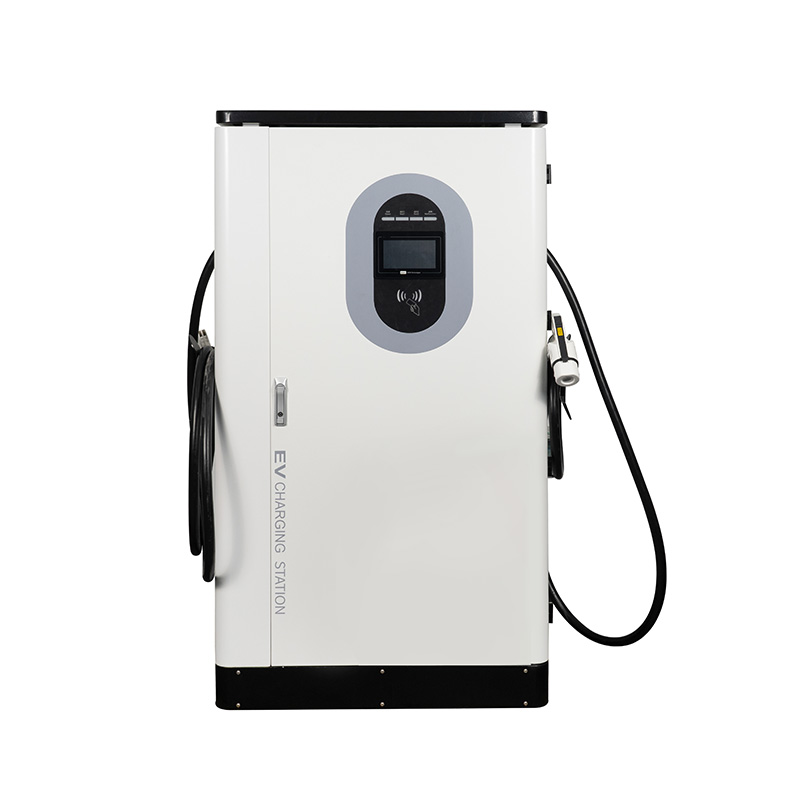

320kW-480kW DC Fast Charger for Heavy-Duty Trucks & 800V Fleets

Product Features

  • 4-Gun Fleet Efficiency: Four outputs maximize throughput and eliminate queuing at your busiest times.
  • Power Range Flexibility: Scalable options from 320kW up to a powerful 480kW (AC 380V input).
  • High-Current Capability: Supports single-gun output up to 400kW, ready for next-gen commercial EVs.
  • Universal 200V-1000V: Seamlessly charges all current and future 800V heavy-duty vehicles.
  • Rugged IP54 Design: Reliable outdoor operation from -20°C to +50°C, built for extreme sites.
  • Flexible Access: Choose RFID Card, QR Code, or Password charging for easy fleet management.

The 480kW Heavy-Duty Fast Charger: Stop Waiting, Start Earning.

Built Specifically for Electric Semi-Trucks & Construction Fleets.

You run a business where minutes equal money. Our 480kW DC Fast Charger is the powerhouse solution designed to give you back those minutes. It’s not just fast; it’s built for the non-stop demands of 800V High-Voltage commercial EVs.

The Speed You Need for Uptime

  • Maximum Power: We push up to 480kW—the peak power needed for today’s massive EV batteries.
  • 10-Minute Range Boost: Get a crucial 200–300 kilometers (125–185 miles) of range in just 10 to 15 minutes.
  • The Bottom Line: Your vehicle spends less time plugged in and more time on the road or job site. Higher efficiency, higher profits.

Smart, Flexible, and Universal

We designed this system to handle any fleet, anywhere.

  • Intelligent Power Sharing: Forget bottlenecks. Our Smart Dynamic Power Distribution allows for dual-gun simultaneous charging. The station automatically balances power between two vehicles, maximizing throughput.

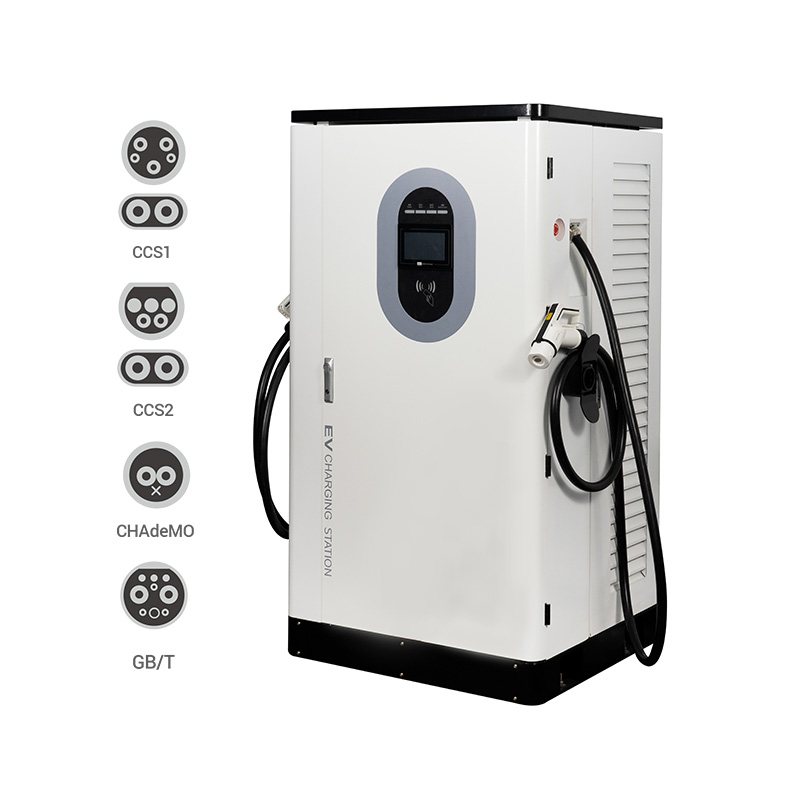

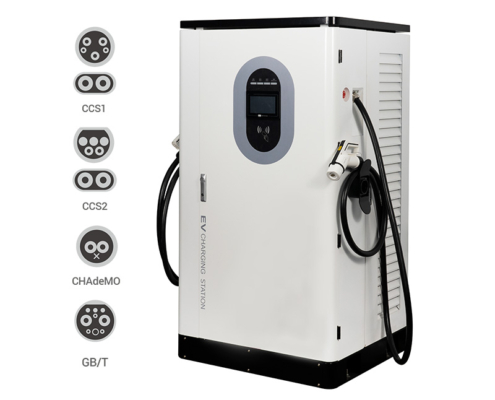

  • Global Compatibility: Ready for all major fleet vehicles. It supports CCS2, GB/T, and CHAdeMO protocols, covering nearly every heavy-duty vehicle brand on the market.
  • Ultra-Wide Voltage: Handles everything from 200V all the way up to 1000V. It adapts to virtually any commercial EV battery system.

Toughness is Standard: Built for the Worst

Your sites aren’t climate-controlled. Neither is our charger.

  • Extreme Durability: With an IP54 rating and a massive operating temperature range of -25°C to 55°C, this unit shrugs off dust, high heat, ports, and freezing cold.
  • Heavy-Duty Components: Critical parts—like the power modules and cooling system—meet Automotive-Grade Standards. This means a lifespan of over 100,000 hours and a minimal failure rate (less than 0.5%). This thing is designed to last.

Intelligent Fleet & Cost Management

This charger is a smart asset that actively helps your P&L.

FeatureYour Business Benefit
Smart Operation (AI-Driven)Automated & Low-Intervention. AI algorithms manage and optimize charging resources. You get high efficiency with almost no human babysitting.
Lower Utility BillsLoad Balancing & Time-of-Use Strategies. The charger automatically manages power draw to take advantage of off-peak rates, cutting your operational electricity costs.
Remote MaintenanceBuilt-in 4G/5G. Supports Remote Monitoring, OTA Updates, and Diagnostics. You can manage the unit, troubleshoot issues, and upgrade firmware from your office.
Top-Tier SafetyMulti-Point Electrical Protection. Constant monitoring prevents over-heating, short circuits, and faults, drastically reducing the risk of a “vehicle burning” incident. Your peace of mind is protected.

The Perfect Fit For:

  • Ports & Logistics Hubs
  • Mining, Quarry, and Construction Work Zones
  • Dedicated EV Truck Stops / Highway Corridors
  • City Sanitation and Municipal Fleet Depots
  • Large Industrial and Corporate Fleet Parks

Take the next step in fleet electrification. Choose the 480kW charger for a Fast, Safe, Smart, and Economical solution that drives your business forward.

Specifications

Product NameAll-in-One Four-Gun DC Fast Charging Station
Rated Power320kW360kW400kW480kW
Input VoltageAC 380V ±15%
Output Voltage200-1000VDC
Output CurrentDC250A (single gun) Optional 300A cableDC250A (single gun) Optional 300A cableDC300A (single gun) Optional 400A cableDC300A (single gun) Optional 400A cable
Max Output per Connector300kW300kW400kW400kW
Cooling MethodForced air cooling
Charging ModesRFID card charging / QR code charging / Password charging
Protection RatingIP54
Working EnvironmentAltitude:≤2000m;Temperature:-20°C~+50°C
Product Dimensions1000*900*1850mm
Operating Humidity5%–95% (non-condensing)

Product FAQs

About Level 3 DC Fast Charging

Level 3 DC fast charging is the quickest way to power up an electric vehicle today. Unlike Level 2 AC chargers, which can take hours, a DC fast charger can bring most EVs from 10% to 80% in just 15 to 40 minutes under ideal conditions. It’s the go-to choice for locations where time matters — highways, gas stations, logistics hubs, and other busy commercial sites.

Why Choose Level 3 DC Fast Charging?

Lightning-fast charging:
With output power ranging from 30kW to 480kW (most common models are 30–360kW), these chargers drastically reduce downtime and get vehicles back on the road quickly.

High efficiency for commercial use:
In about 30 minutes, most vehicles can gain 125–300 miles (200–480 km) of driving range — perfect for long-distance routes or fleet operations where every minute counts.

A business advantage:
Adding DC fast chargers can turn your gas station, shopping center, or hotel into a destination. Drivers stay longer, spend more, and associate your brand with innovation and sustainability.

Where Level 3 Chargers Fit Best

Because of their high power draw and the need for specialized installation, DC fast chargers are typically installed at commercial sites with strong grid capacity — not at private homes or standard office buildings. They’re built for places that serve many vehicles daily and require dependable uptime.

DC Fast Charging Solutions from AnengJi

AnengJi offers a complete range of commercial DC fast charging solutions, supporting CCS, CHAdeMO, and GB/T standards to serve all major EV models worldwide.
Power options span from 30kW up to 480kW, allowing businesses and operators to scale according to site demand.

Our chargers are engineered for long-term reliability, network compatibility, and easy integration — helping global partners build high-performance, high-utilization EV charging stations that keep drivers moving and businesses growing.
