Charger Features
| Product Name | AC Charger Station(Plastic Type) | ||
|---|---|---|---|
| Rated output power | 7kW | 11kW | 22kW |
| Overall dimensions (mm) | 400*280*120mm | ||
| Rated input and output current | 32A | 16A | 32A |
| AC power supply | AC220V±15% | AC380V±15% | |
| Human-computer interaction | LED indicator strip/4.3 Inch screen | ||
| Working Environment | Altitude:≤2000m;Temperature:-20°C~+50°C | ||
| Communication protocol | OCPP1.6J | ||
| Charging method | Swipe card, scan code | ||
| Networking methods | Ethernet/4G/WIFI | ||
| Operation mode | / | ||
| Executive standard | IEC 61851-1:2017;1EC 62196-2:2016 | ||
| Charging cable length | Standard 5 meters(optional) | ||
| Protection grade | IP54 | ||
| Protection function | Overvoltage protection, undervoltage protection, overload protection, ground protection, overcurrent protection, leakage protection, and overtemperature protection. | ||

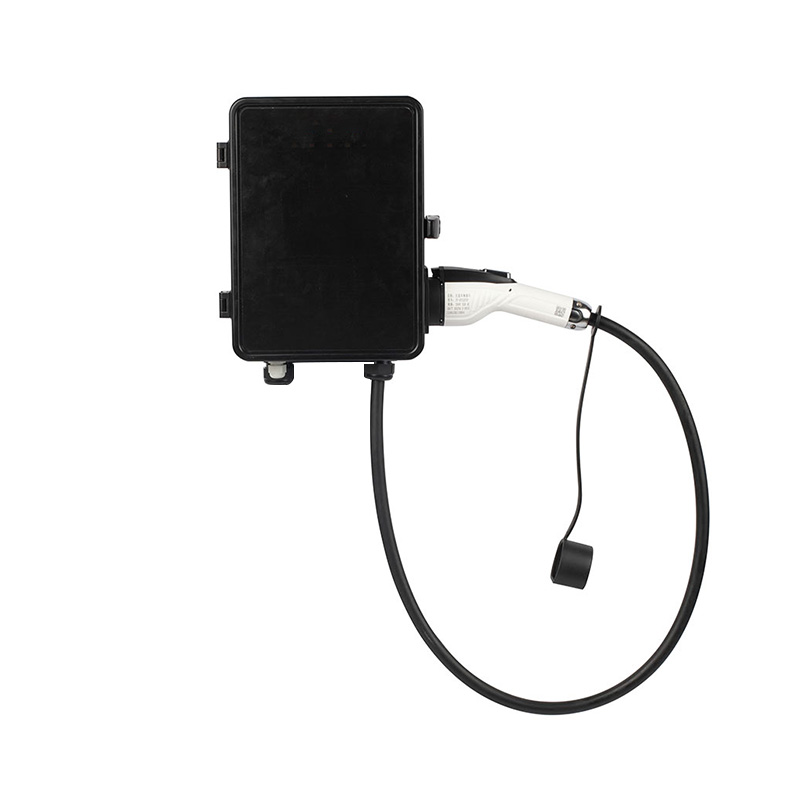

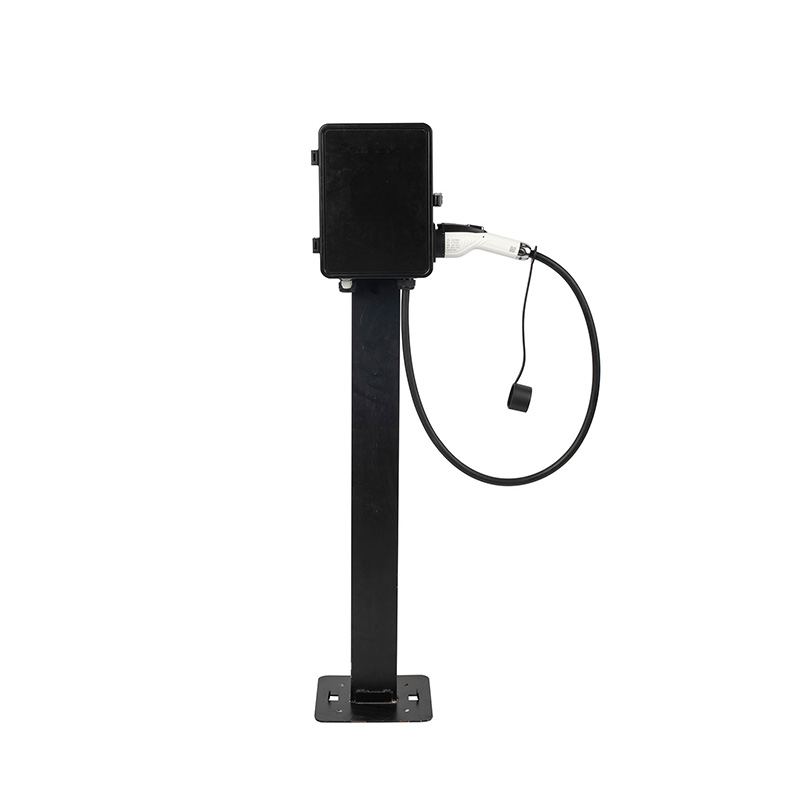

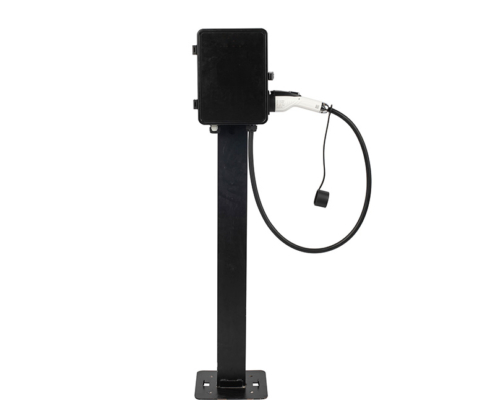

| Installation Method | Wall-mounted or floor-standing installation, with matching accessories required. | ||
What is the difference between 7kW, 11kW, and 22kW chargers?
The main difference is charging speed. A 7kW charger suits home use and can charge most EVs overnight. 11kW and 22kW models are ideal for workplaces or public parking areas, offering faster turnaround times.
Can this charger work with Tesla vehicles?
Yes. With the J1772 or Type 2 connector and the proper adapter, it supports most Tesla models in North America and Europe.
Is the charger compatible with both single-phase and three-phase power?
The 7kW version uses single-phase 220V, while the 11kW and 22kW models operate on three-phase 380V power systems.
How can users start a charging session?
You can start charging via RFID card, QR code scan, or a connected OCPP app — depending on your system setup.
Can it be used outdoors?
Yes. The charger is IP54-rated, built to withstand rain, dust, and temperature extremes. It’s suitable for both indoor garages and outdoor parking spaces.
Does it support smart charging platforms?
Absolutely. It supports OCPP 1.6J, which allows integration with major EV management systems for remote monitoring, billing, and updates.
Level 2 charging stations are a common sight in public parking lots, office parks, retail centers, and residential communities. They’re the go-to choice for daily charging—whether it’s for a single EV at home or a fleet at work.
Unlike Level 1 chargers, which use a standard 120V outlet, Level 2 chargers run on 220V single-phase or 380V three-phase AC power. They deliver 7kW to 22kW of output, making them three to five times faster. For most vehicles, that means a full charge in roughly 3 to 8 hours, depending on the battery size. It’s faster, more practical, and fits seamlessly into daily routines.
EV batteries are getting bigger—60 to 100 kWh is becoming the norm. Bigger batteries need faster charging. Upgrading to a Level 2 charger isn’t just about convenience today. It’s a smart investment that keeps your charging setup future-ready, without constant upgrades or replacements.
