7kW AC EV Charger – Metal Type | Level 2 Wall-Mounted Home & Commercial Charging Station

Charger Features

Compact, durable metal housing for long-lasting use.
7kW Level 2 fast charging, perfect for homes and businesses.
Compatible with J1772 (Type 1), IEC 62196 (Type 2), and GB/T connectors.
Smart touch screen and LED indicator for easy operation.
OCPP 1.6J support for remote monitoring and billing.
IP54 weatherproof design, suitable for indoor and outdoor installation.
Wall-mounted or floor-standing installation for flexible site needs.

Product Overview

Product Description

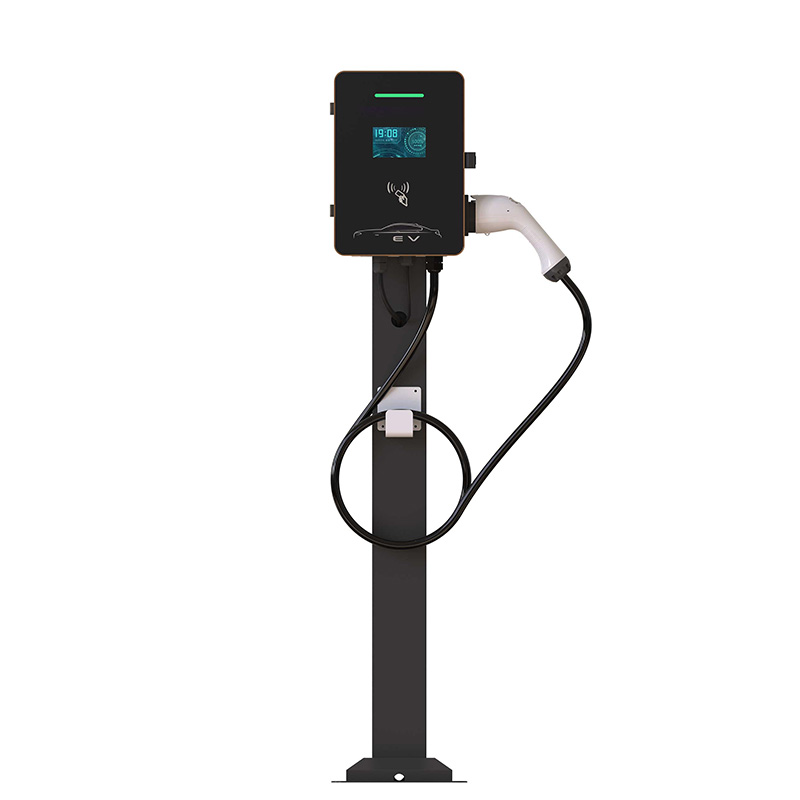

The 7kW AC EV Charger (Metal Type) is a reliable and efficient Level 2 EV charging solution designed for residential, commercial, and workplace applications.
Built with a sturdy metal enclosure and IP54 protection, it’s engineered to withstand outdoor environments like parking lots, garages, offices, and fleet stations.

This charger provides 7kW of stable power, reducing charging time compared to standard Level 1 chargers. It supports J1772 (Type 1), IEC 62196 (Type 2), and GB/T 20234 connectors, making it compatible with most EVs on the market, including models from Tesla (with adapter), BMW, Hyundai, BYD, and more.

With OCPP 1.6J protocol, the charger can easily connect to charging management platforms for smart control, remote monitoring, and billing integration. It offers flexible installation options — wall-mounted or floor-standing, making it ideal for private garages, apartment buildings, hotels, and small commercial parking areas.

Its intelligent protection system covers overvoltage, undervoltage, overcurrent, short-circuit, leakage, and temperature protection, ensuring safe and stable charging every time.

Specifications

Product Name	AC Charger Station(Metal Type)
Rated output power	7kW
Overall dimensions (mm)	300120450mm
Rated input and output current	32A
AC power supply	AC220V±15%,50±10Hz
Human-computer interaction	4.3 Inch bright color touch screen,LED indicator strip
Working Environment	Altitude:≤2000m;Temperature:-20°C~+50°C
Communication protocol	OCPP1.6J
Charging method	Swipe card, scan code,Plug and charge
Networking methods	Ethernet/4G
Operation mode	/
Executive standard	IEC 61851-1:2017;1EC 62196-2:2016
Charging cable length	Standard 5 meters(optional)
Protection grade	IP54
Protection function	Overvoltage protection, undervoltage protection, overload protection, ground protection, overcurrent protection, leakage protection, and overtemperature protection.
Installation Method	Wall-mounted or floor-standing installation, with matching accessories required.

Product FAQs

How fast does a 7kW AC EV Charger charge my car?

A 7kW AC charger can typically deliver 25–30 miles of range per hour, depending on your vehicle’s battery size and onboard charger. For most EVs, it can fully charge overnight, making it a great solution for daily home charging or workplace EV charging.

Is the 7kW AC EV Charger compatible with my car?

Yes. It supports J1772 (Type 1), IEC 62196 (Type 2), and GB/T connectors, which are compatible with most EV brands globally. Whether you drive a Tesla (with adapter), Nissan, Volkswagen, BYD, or Hyundai, this charger works seamlessly.

Can I install the charger outdoors?

Yes. With IP54 waterproof and dustproof protection, the charger is designed to withstand harsh weather conditions. It’s safe to install it indoors or outdoors, in parking lots, garages, or apartment buildings.

What smart features does the charger have?

This charger supports OCPP 1.6J, allowing you to connect it to EV charging management systems. You can track real-time charging status, manage users, set up billing, and remotely monitor your charging network — ideal for businesses and property owners.

What’s included in the package?

Each unit comes with a 5-meter charging cable, mounting accessories, and installation manuals. You can choose between wall-mounted or floor-standing installation, depending on your site requirements.

What kind of protection does it have?

Safety is a top priority. The charger includes overvoltage, undervoltage, overcurrent, short circuit, leakage, and overtemperature protection, ensuring stable operation and protecting both your EV and your power system.

How does this compare to a 22kW charger?

A 22kW charger is faster but typically requires three-phase power. The 7kW charger runs on single-phase 220V, making it easier and more cost-effective to install at homes, small businesses, and hotels. It’s an excellent balance between speed, cost, and compatibility.

About Level 2 EV Chargers

Level 2 charging stations are a common sight in public parking lots, office parks, retail centers, and residential communities. They’re the go-to choice for daily charging—whether it’s for a single EV at home or a fleet at work.

Unlike Level 1 chargers, which use a standard 120V outlet, Level 2 chargers run on 220V single-phase or 380V three-phase AC power. They deliver 7kW to 22kW of output, making them three to five times faster. For most vehicles, that means a full charge in roughly 3 to 8 hours, depending on the battery size. It’s faster, more practical, and fits seamlessly into daily routines.

Ready for the Road Ahead

EV batteries are getting bigger—60 to 100 kWh is becoming the norm. Bigger batteries need faster charging. Upgrading to a Level 2 charger isn’t just about convenience today. It’s a smart investment that keeps your charging setup future-ready, without constant upgrades or replacements.

Talk to a Charging Expert

We’re here to help you build a cleaner, smarter future—without the high costs. Every charger we make meets strict global standards like CE, CB, TUV, UL, IEC, and RoHS. Safe. Reliable. Built to last.

Our team of technical experts will help you find the right EV charging solution for your specific needs. Whether you’re setting up stations for a hotel, an office park, a fleet, or a residential project, we’ll guide you through product selection, power planning, and installation options.

Have questions? Give us a call or send us an email. You can also fill out the form on the right, and we’ll get back to you within 24 hours with free professional support.
