7kW AC Charging Station | Wall-Mounted or Floor-Standing EV Charger

Charger Features

  • 7kW AC charger compatible with J1772, Type 2, and GB/T connectors
  • OCPP 1.6J smart charging with Ethernet, WiFi, or 4G connection
  • Start charging via RFID, QR code, VIN, or password
  • 4.3” touchscreen display for easy operation and status monitoring
  • IP54 weatherproof design for indoor or outdoor installation
Inquire Now
Product OverviewSpecificationsFAQs
PreviousNext

Product Overview

7kW AC Charging Station (Plastic Type)

The 7kW AC EV Charger is a smart, compact, and reliable charging solution designed for residential, workplace, and light commercial applications. Built with safety, intelligence, and modern design, it delivers efficient and user-friendly charging for most electric vehicles.

Versatile Compatibility for All EVs

This AC charger supports J1772 (Type 1), IEC 62196 (Type 2), and GB/T connectors—making it suitable for a wide range of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs) worldwide. Whether installed at home, a parking lot, or a commercial property, it ensures a convenient and universal charging experience.

Smart Control and Connectivity

With OCPP 1.6J protocol support, the charger easily integrates with EV charging management platforms for remote control, billing, and data monitoring.
Users can start charging via RFID card, VIN input, password, or QR scan, providing flexibility for both private and shared environments.

Networking options include Ethernet, WiFi, and 4G, allowing operators to monitor and manage charging sessions anytime, anywhere.

Safe and Durable Design

Built for real-world outdoor conditions, this IP54-rated EV charger operates reliably in -20°C to +50°C temperatures and altitudes up to 2000m.
It’s equipped with overvoltage, undervoltage, overload, leakage, and overtemperature protection, ensuring every charging session is stable and secure.

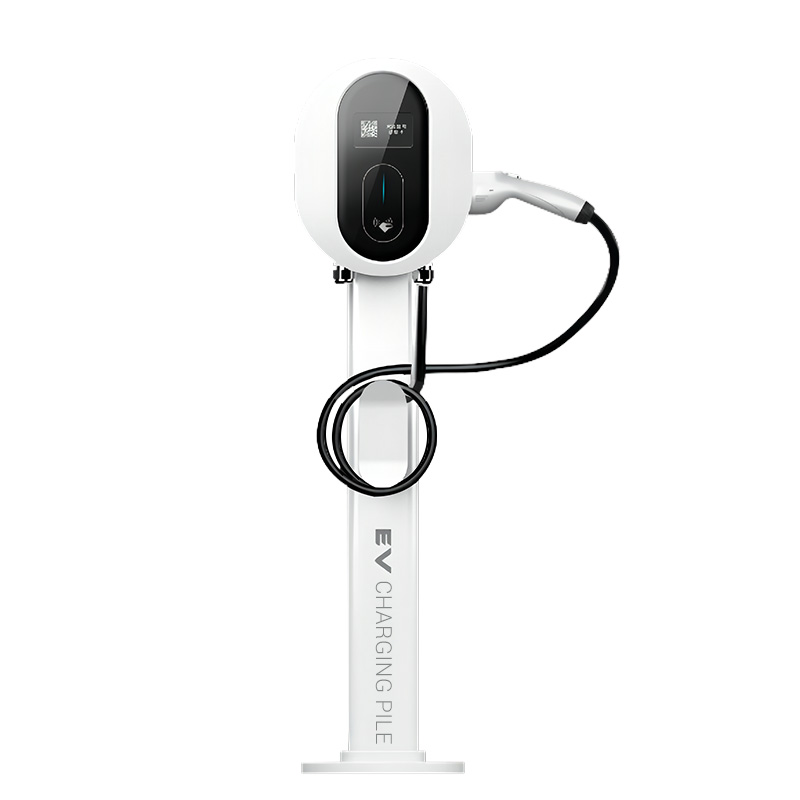

Flexible Installation Options

Choose between wall-mounted or floor-standing installation, depending on the site layout. The compact plastic enclosure (400×280×120mm) makes installation simple and space-efficient, ideal for home garages, offices, and parking lots.

Why Choose This 7kW AC EV Charger?

  • Universal compatibility (J1772, Type 2, GB/T)

  • Smart OCPP 1.6J protocol for platform integration

  • Multiple charging access modes (RFID, QR, VIN, password)

  • Strong protection and IP54 weather resistance

  • Easy setup and compact design

  • Ideal for residential and commercial EV charging

Specifications

Product NameAC Charging Station(Plastic version)
Rated output power7kW
Overall dimensions (mm)360 × 295 × 120 mm
Rated input and output current32A
AC power supply220 VAC ±20%, 50 Hz ±10%, L+N+PE
Human-computer interaction4.3″ screen
Working EnvironmentAltitude:≤2000m;Temperature:-20°C~+50°C
Communication protocolOCPP1.6J
Charging methodVIN, password, RFID card, or QR code
Networking methodsEthernet, 4G, Wi-Fi
Billing ModeOffline (free), offline billing, or online billing
ConnectorGB/T 20234.2-2015
Charging cable length5 m standard (optional extension)
Protection gradeIP54
Protection functionOvervoltage, undervoltage, overcurrent, short circuit, surge, leakage, and more
Installation MethodWall-mounted or floor-standing installation, with matching accessories required.

Product FAQs

This charger supports J1772 (Type 1), Type 2, and GB/T connectors, covering most EVs and plug-in hybrid vehicles from major brands such as Tesla (with adapter), BYD, Nissan, BMW, and Hyundai. It’s designed for global use, supporting both North American and European standards.

 Absolutely. The 7kW version runs on single-phase 220V power, making it ideal for home garages or private parking spaces. It’s compact, quiet, and easy to install—either on the wall or with a floor stand.

Yes. The charger uses OCPP 1.6J, compatible with most smart charging platforms. You can monitor charging sessions, control access, and even manage billing remotely through Ethernet, WiFi, or 4G connection.

Charging can be started using RFID cards, QR code scanning, VIN recognition, or password entry. These flexible options make it suitable for private users or shared parking lots.

The charger is equipped with full protection: overvoltage, undervoltage, overcurrent, leakage, surge, short circuit, and over-temperature protection. It’s built for long-term, stable use in all environments.

Yes. With IP54-rated weather protection, it’s resistant to dust, rain, and sunlight, ensuring stable operation from -20°C to +50°C. Perfect for both indoor and outdoor installations.

 Yes. It supports OCPP 1.6J, the standard used by most commercial charging networks, making it easy to integrate into existing EV charging management systems.

The wall-mounted version saves space, ideal for homes or garages. The floor-standing model includes a sturdy metal stand for parking lots or commercial sites. Both share the same technical specs and charging performance.

A 7kW charger typically adds about 25–30 miles of range per hour, depending on the vehicle’s battery capacity and onboard charger. Most EVs can be fully charged overnight.

About Level 2 EV Chargers

Level 2 charging stations are a common sight in public parking lots, office parks, retail centers, and residential communities. They’re the go-to choice for daily charging—whether it’s for a single EV at home or a fleet at work.

Unlike Level 1 chargers, which use a standard 120V outlet, Level 2 chargers run on 220V single-phase or 380V three-phase AC power. They deliver 7kW to 22kW of output, making them three to five times faster. For most vehicles, that means a full charge in roughly 3 to 8 hours, depending on the battery size. It’s faster, more practical, and fits seamlessly into daily routines.

Ready for the Road Ahead

EV batteries are getting bigger—60 to 100 kWh is becoming the norm. Bigger batteries need faster charging. Upgrading to a Level 2 charger isn’t just about convenience today. It’s a smart investment that keeps your charging setup future-ready, without constant upgrades or replacements.
