Product Features
Our charger uses advanced noise-reduction technology to keep sound levels at or below 55 dB—about as quiet as a soft conversation indoors. It won’t disturb neighbors, even in dense residential areas or during late-night charging. The low-vibration design also removes the mechanical hum you often hear from traditional chargers, creating a calmer and more comfortable environment around the station.

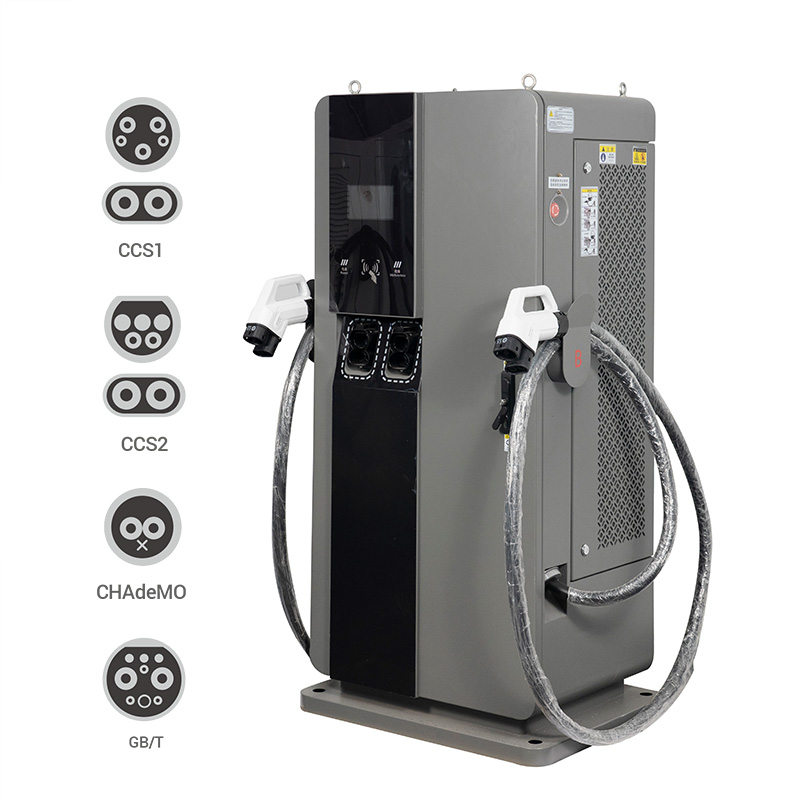

With 120 kW to 160 kW of charging power, it works with all major EV brands and models. It supports fast-charging standards like GB/T and CCS, and can take a battery from 20% to 80% in roughly 30 minutes. It’s built for daily commutes, long-distance travel, and everything in between.
A built-in smart power-distribution system automatically adjusts output when multiple cars are plugged in at the same time. Each connector gets the power it needs without overloading the grid. This makes the charger ideal for neighborhoods, business parks, shopping centers, and any location with high charging demand.
The unit meets national safety certification requirements and includes layered protection—over-voltage, over-current, leakage, and lightning protection. With an IP54 rating, it’s ready for rain, snow, dust, and year-round outdoor use.
A 24/7 remote monitoring system keeps an eye on the charger at all times. Operating status updates are sent instantly, and alerts—such as high temperature, communication drops, or system faults—are pushed in real time to keep both the equipment and users safe.
Users can manage everything through a dedicated app or WeChat Mini Program. They can schedule charging, check progress, view billing history, and submit service requests with one tap. The experience is simple, direct, and built for convenience.
Optional card-swipe or QR-code payment integrates seamlessly with property-management and parking-lot systems. It’s a flexible solution for residential communities, commercial complexes, office buildings, and other locations looking to run charging operations efficiently and with minimal staffing.

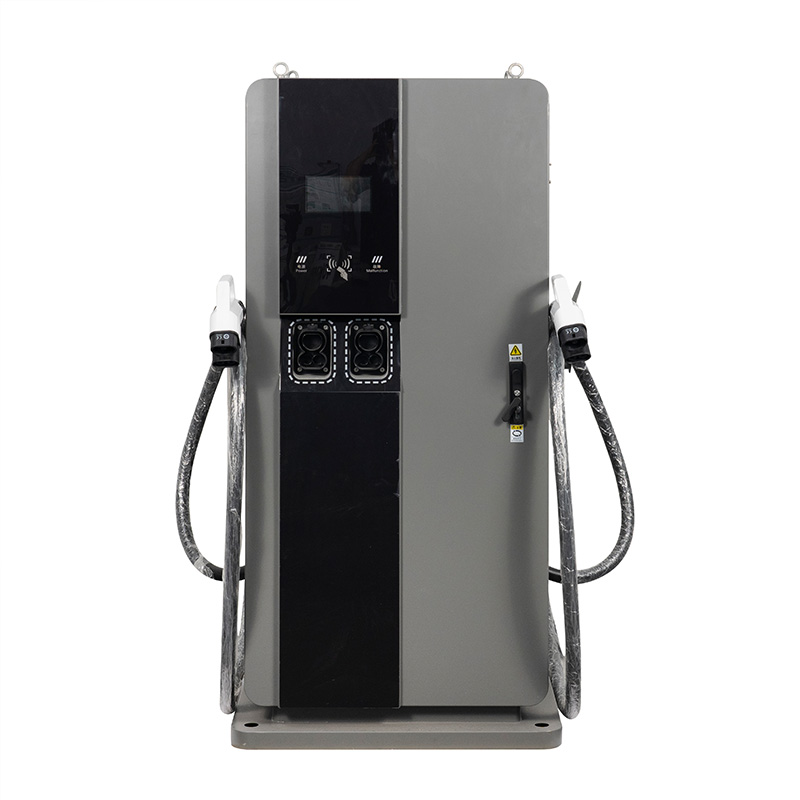

A 120kW/160kW DC fast charging station is built for one purpose—getting electric vehicles back on the road quickly. As EV adoption accelerates around the world, the need for high-power, reliable fast chargers keeps growing. The 120kW/160kW charger sits right in the sweet spot: powerful enough for highway corridors and busy commercial sites, yet efficient and stable for everyday public charging.
This article walks through what a 120kW/160kW DC fast charging station is, how the technology works, and why it has become such a valuable asset for drivers, fleets, and charging-station operators. You’ll also find the main advantages, installation basics, and key safety notes to know before putting one into service.
DC fast charging has become the backbone of today’s EV infrastructure. Unlike AC chargers that rely on the vehicle’s onboard converter, a DC fast charger sends high-voltage direct current straight to the battery. That’s what makes a 120kW/160kW charger so quick—it can deliver a large amount of energy in a short burst.
A 120kW/160kW DC fast charger gives drivers exactly what they need in high-demand scenarios: enough power to support long-distance travel, fleet turnover, and high-frequency daily use. For EV models that support high-power charging, a 120kW/160kW station can bring a battery from about 20% to 80% in roughly 20 to 30 minutes. That shorter wait time makes it a practical fit for highways, city parking lots, shopping centers, logistics hubs, and anywhere uptime matters.
In simple terms, a 120kW/160kW DC fast charging station cuts downtime, keeps vehicles moving, and creates a smoother, more dependable EV-charging experience.
With EV ownership rising at double-digit rates globally, operators need charging solutions that can handle constant traffic without sacrificing reliability. The 120kW/160kW DC charger strikes the right balance between performance and cost, which is why it is now widely deployed across:
Drivers get fast turnaround. Operators get higher throughput. And businesses gain a future-ready energy asset that supports their long-term EV strategy.
Put simply, the 120kW/160kW DC fast charging station isn’t just a piece of hardware. It’s a practical, efficient fast-charging solution that helps bridge the gap between today’s EV demand and tomorrow’s electrified mobility.
| Product Name | Rated Power | |||
|---|---|---|---|---|
| Rated power | 120kW | 160kW | ||
| Installation method | Vertical | |||
| Feeding method | Bottom in and out | |||
| Equipment size | 750*550*1700mm | |||
| Input voltage | AC380V±15% | |||
| Input frequency | 50±10Hz | |||
| Output voltage | 200-(750)1000VDC | |||
| Output current | 0-200A | |||
| Charging cable length | 5m | |||
| Accuracy | Level 1.0 | |||
| Efficiency | ≥96% | |||
| Human-computerinteraction | 7 inch bright color touch screen | |||
| Cooling Method | Natural Air Cooling | |||
| Operating Humidity | 5%–95% (non-condensing) | |||
| Charge mode | Automatic charging/fixed power/fixed amount/fixed time | |||
| Charging method | Swipe card /Scan code /Password | |||
| Networking methods | Ethernet/4G | |||
| Executive standards | EC61851-1:2017;IEC62196-2:2016 | |||
| Working environment | Altitude:≤2000m;Temperature:-20°C~+50°C | |||
| Protection level | IP54 | |||
| Noise | Forced air cooling | |||
| MTBF | 17520h | |||
| Communication protocol | OCPP 1.6J | |||
Level 3 DC fast charging is the quickest way to power up an electric vehicle today. Unlike Level 2 AC chargers, which can take hours, a DC fast charger can bring most EVs from 10% to 80% in just 15 to 40 minutes under ideal conditions. It’s the go-to choice for locations where time matters — highways, gas stations, logistics hubs, and other busy commercial sites.
Lightning-fast charging:
With output power ranging from 30kW to 480kW (most common models are 30–360kW), these chargers drastically reduce downtime and get vehicles back on the road quickly.
High efficiency for commercial use:
In about 30 minutes, most vehicles can gain 125–300 miles (200–480 km) of driving range — perfect for long-distance routes or fleet operations where every minute counts.
A business advantage:
Adding DC fast chargers can turn your gas station, shopping center, or hotel into a destination. Drivers stay longer, spend more, and associate your brand with innovation and sustainability.
Because of their high power draw and the need for specialized installation, DC fast chargers are typically installed at commercial sites with strong grid capacity — not at private homes or standard office buildings. They’re built for places that serve many vehicles daily and require dependable uptime.
AnengJi offers a complete range of commercial DC fast charging solutions, supporting CCS, CHAdeMO, and GB/T standards to serve all major EV models worldwide.
Power options span from 30kW up to 480kW, allowing businesses and operators to scale according to site demand.
Our chargers are engineered for long-term reliability, network compatibility, and easy integration — helping global partners build high-performance, high-utilization EV charging stations that keep drivers moving and businesses growing.
