10ft vs 20ft vs 40ft Container BESS: Sizing & Procurement Guide

Introduction

Let’s cut through the standard marketing fluff around modern energy infrastructure. When launching a commercial solar asset or grid upgrade, finding the exact shell for your hardware is a massive puzzle. Deciding between a 10ft vs 20ft vs 40ft Container BESS configuration shapes your entire site development timeline. It is never as simple as buying the largest steel box available. The foot-print you choose rewrites your transport logistics, dictates your mandatory fire spacing safety margins, and impacts your long-term internal rate of return. A mismatches block locks you into high structural balance-of-system expenses. To prevent costly layout revisions, choosing your 10ft vs 20ft vs 40ft Container BESS setup requires balancing localized energy footprint limits against strict transmission interconnection realities.

Why Container Size Matters in Solar Battery Energy Storage System Design

Every square meter of concrete layout costs money. Containerized footprint geometry acts as the core building block for all civil and electrical engineering calculations on site.

How BESS Container Dimensions Affect Project Planning

The physical footprint of a Containerized Battery Energy Storage System directly impacts local land zoning permits. If you select a footprint too large for your commercial layout, your fire safety clearance distances contract dangerously. This leads to costly pushback from local municipal boards. Dimensions alter your crane access requirements during initial installation, and determine whether you need expensive heavy logistics permits on regional transit roads.

The Relationship Between Container Size, Energy Density and Project Cost

Opting for a larger Battery Energy Storage Container platform boosts your structural volumetric energy density. It packs more megawatt-hours into a singular physical footprint. This consolidation drops the total number of physical civil pads you need to pour. It also slashes the amount of expensive high-voltage field wiring connections between separate modules. However, these oversized units place intense physical stress on local roadways, requiring high-capacity cranes that spike your initial mobilizing layout expenses.

Key Factors Before Selecting a BESS Container Size

Before issuing an RFQ to equipment manufacturers, verify these critical core baseline constraints:

• The exact continuous and peak Energy Storage System Capacity required by your grid connection.
• Total available, unconstrained real estate acreage inside your property boundaries.
• Weight and clearance limits on rural access roads leading directly to your substation.
• Total available upfront capital budget allocation for mechanical balance-of-system assets.
• Anticipated phase-two capacity augmentation schedules over a 15-year horizon.

Buyer’s Perspective on Upfront Risk: I often see buyers get blinded by the lowest dollar-per-kilowatt-hour component quote on a 40ft unit. They completely overlook the hidden local site preparation fees. If your tight rural roads require a specialized heavy-haul transport crew, those shipping surcharges can wipe out your volume savings overnight.

10ft BESS Container: Compact Energy Storage Solution for Flexible Deployment

When high-volume megawatt footprints are unnecessary, small modular enclosures provide great agility for constrained infrastructure.

What Is a 10ft BESS Container?

A 10ft battery storage container represents the compact tier of modular power architecture. It functions as a pre-assembled, highly resilient enclosure designed for quick deployment in constrained spaces where a full-sized industrial platform cannot fit.

Typical Applications of 10ft Battery Storage Containers

These smaller systems fit perfectly within highly specialized microgrids, urban fast-charging vehicle corridors, and remote telecom relay stations. They also serve light industrial operations looking to dodge steep peak utility tariffs without sacrificing local parking space.

Advantages of 10ft BESS Containers

The chief benefit centers on localized site agility. You can transport these units easily using standard flatbed commercial trucks, bypassing expensive specialized transit permits entirely. On-site placement requires only standard hydraulic cranes, making this hardware ideal for tight behind-the-meter industrial locations.

Limitations of 10ft BESS Containers

The primary downside is its limited internal volumetric capacity. If your facility requires massive long-duration discharging blocks, you are forced to parallel connect multiple 10ft systems. This spikes your overall control software integration complexity and increases individual field maintenance points.

Typical 10ft BESS Container Specifications (2026 Standard)

A standard 10ft container system packs efficient electrical capabilities into a small physical frame:

• Energy Capacity Range: 500 kWh to 1.2 MWh of continuous output.
• Power Rating: 250 kW to 500 kW bi-directional inverter integration.
• Battery Chemistry: Premium Lithium Iron Phosphate Battery Container cells.
• Cooling Architecture: Smart forced-air HVAC or efficient liquid-plate thermal loops.
• Physical Dimensions: 10′ x 8′ x 8.5′ standard utility footprint.

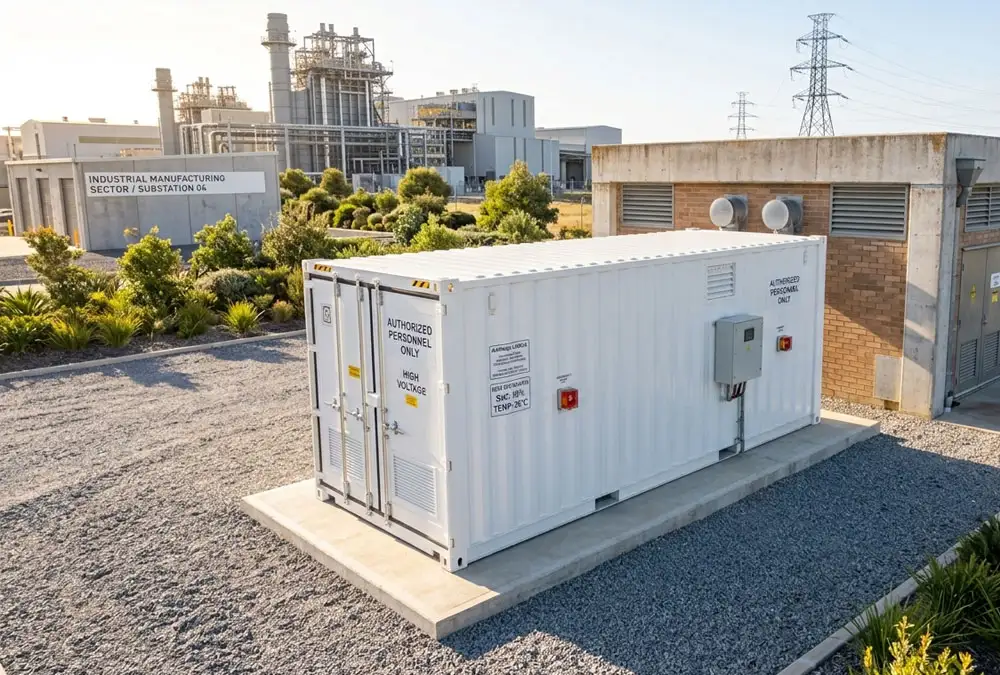

20ft BESS Container: The Industry Standard Balance Between Capacity and Cost

The 20ft BESS container represents the absolute sweet spot for mid-tier commercial power projects and localized grid-buffering applications worldwide.

Why 20ft BESS Containers Are Widely Used Worldwide

This scale dominates the global energy market because it matches standard ocean freight logistics perfectly. Supply chains are highly optimized for this footprint. EPC contractors possess extensive experience installing these modules, which lowers your labor risk and keeps project insurance premiums manageable.

Typical Applications of 20ft Battery Energy Storage Containers

You will find these systems deployed across large-scale factory peak-shaving arrays, medium-sized commercial solar PV farms, and regional distribution substations requiring fast frequency regulation.

Advantages of 20ft BESS Container

This layout offers excellent internal energy density while utilizing standard, low-cost intermodal freight shipping methods. Maintenance teams can access internal battery racks easily through external access doors, keeping long-term operational complexity low and lowering your overall CAPEX.

Typical 20ft BESS Container Specifications (2026 Standard)

The 20ft platform delivers significant electrical capacity within a standardized form factor:

• Capacity Range: 2.0 MWh to 3.7 MWh of total storage capacity.
• PCS Configuration: Fully integrated central or modular string inverters.
• Battery Technology: Multi-tier, cell-level managed LFP chemistry blocks.
• Cooling System: Advanced liquid-glycol thermal distribution networks.

40ft BESS Container: High-Capacity Energy Storage Hub for Utility Scale Projects

When projects scale into massive multi-megawatt generation territory, maximizing volumetric density inside a single enclosure becomes paramount.

What Makes 40ft BESS Containers Different?

The 40ft battery energy storage container for utility scale projects functions as a high-capacity bulk energy hub. It prioritizes maximizing total megawatt-hours per square meter above all else, consolidating major electrical systems into a singular infrastructure footprint.

Applications of 40ft Battery Storage Containers

These large-scale systems are engineered specifically for utility-scale renewable installations, bulk transmission grid balancing arrays, and massive multi-megawatt independent power producer (IPP) facilities.

Advantages of 40ft BESS Containers

By packaging maximum capacity into a single enclosure, you cut down the total number of separate containers needed on site. This drops your total land clearings costs, minimizes concrete foundation work, and simplifies your high-voltage SCADA tracking networks.

Design Challenges of 40ft BESS Containers

The sheer size of a 40ft unit requires careful logistical planning. Transporting these massive systems down tight rural access roads demands professional route clearances. Furthermore, managing the intense thermal loads generated within these dense setups requires heavy-duty cooling loops and robust fire suppression layouts.

Insider Procurement Check: Answering the Hidden Questions Buyers Ask Too Late

When you are scrolling through manufacturer data sheets, everything looks perfect on paper. But as an EPC consultant who has negotiated hundreds of energy storage contracts, I know the real headaches start when the heavy cargo hits your job site. Let’s address three unspoken fears that commercial buyers frequently wrestle with before signing a purchase order:

Dilemma 1: “If I choose a massive 40ft system today, how painful is it to augment the capacity 5 to 7 years down the line when the cells naturally degrade?”
This is a critical risk that many developers ignore. If you deploy a single 40ft container packed to maximum capacity on day one, adding new cells inside that same enclosure years later is an engineering nightmare due to severe DC voltage mismatches between old and new battery racks.
→ The Pro Fix: If your financial model relies heavily on capacity augmentation in year 5, choosing a cluster of modular 20ft containers is much safer. It allows you to completely isolate new battery string augmentations into separate, dedicated enclosures via independent string inverters, saving you from catastrophic system integration failures later.

Dilemma 2: “Liquid cooling sounds highly efficient, but what happens if a glycol cooling line leaks inside my high-density 20ft container? Will it destroy my entire multimillion-dollar investment?”
This is the number one fear for field operation managers who dread the combination of liquids and electricity.
→ The Pro Fix: When screening BESS manufacturers, never look just at the battery cells. Look at the plumbing. Premium tier-1 systems use completely isolated, multi-loop leak containment channels situated beneath the battery trays, paired with continuous electronic pressure monitors. Even if a minor leak occurs, the fluid drains completely away from the live high-voltage busbars, and the automated system shuts down only that single affected rack, preserving 90% of your power station uptime.

Dilemma 3: “Local fire marshals in my state are terrified of thermal runaway. Will a 40ft container make my local permitting process impossible?”
Yes, if you choose a poorly designed container. A larger container holds more chemical mass, which automatically puts local fire departments on high alert during site reviews.
→ The Pro Fix: If your site is located near commercial properties or strict municipal boundaries, don’t automatically buy a 40ft block. A 20ft container certified under UL 9540A (cell, rack, and unit level testing) provides concrete burn test data that fire marshals trust. It proves that even if a full rack catches fire, the internal thermal barriers stop the flame from propagating outside the shell, making your local zoning approval walk through smoothly.

10ft vs 20ft vs 40ft Container BESS Comparison: Which Solution Fits Your Project?

Selecting the optimal container tier requires evaluating spatial constraints alongside direct installation costs. Here is how the three major sizes compare across critical project metrics:

Buyer’s Perspective on Scalability: If your project requires 10 MWh of storage today but plans to expand to 20 MWh in five years, using a 20ft container footprint provides great modular flexibility. This lets you align your capital spending with your actual revenue growth, rather than over-investing in oversized 40ft units on day one.

Recommended BESS Container Sizes by Application Scenario

Matching your specific application to the correct container tier minimizes structural integration costs and optimizes long-term system efficiency.

Solar Farm Battery Storage Projects

Large ground-mounted solar fields typically choose 20ft or 40ft configurations. These high-capacity units absorb immense afternoon energy spikes efficiently while optimizing valuable real estate inside the main substation perimeter.

Commercial and Industrial Energy Storage

Behind-the-meter factory installations generally favor 10ft or 20ft layouts. These sizes blend easily into existing factory parking structures or tight equipment yards, providing excellent peak-shaving capabilities without disrupting daily facility logistics.

EV Charging Station Energy Storage

High-speed highway vehicle hubs benefit greatly from 10ft or 20ft modular designs. They function as high-power buffers that shield fragile distribution grids from sudden voltage drops during peak charging hours.

Utility Scale Renewable Energy Projects

For large-scale, multi-megawatt transmission installations, the 40ft battery energy storage container for utility scale projects remains the industry standard. It maximizes raw capacity density, which simplifies your central SCADA monitoring networks.

How to Choose the Most Cost-Effective BESS Container Size

Optimizing your system investment requires analyzing life-cycle operating expenses alongside initial component costs.

Balance Initial Investment and Long-Term Operating Cost

Do not evaluate project economics solely on upfront acquisition costs. A lower-priced, poorly insulated container forces your HVAC systems to run constantly. This increases your site’s auxiliary power use and degrades your long-term round-trip efficiency.

Evaluate Land Utilization and Installation Cost

For large utility projects, compute your total installation costs on a per-megawatt-hour basis. Choosing high-density 40ft containers minimizes the total number of concrete foundations you need to pour and cuts down on long-term trenching and wiring expenses.

How Container Design Affects BESS Performance and Efficiency

The structural engineering inside the container housing impacts your cell degradation rates and shapes your entire project lifecycle.

Cooling Technology: Air Cooling vs Liquid Cooling

Traditional air cooling relies on heavy HVAC fans pushing air through the cabinet gaps, which often creates uneven hot spots within the racks. In contrast, premium liquid cooling circulates a specialized fluid mixture directly through plates contacting each cell. This maintains uniform temperatures across the system, extending overall cell life by up to 20%.

Safety Design and Thermal Management

Modern industrial enclosures prevent thermal runaway through layered safety designs. High-speed internal sensors catch cell anomalies early, combining active liquid cooling with automated fire suppression and pressure-relief deflagration panels that vent upward safely.

Advantages of BESS Compared With Diesel Generator Backup Systems

Shifting away from fossil-fuel backup generation replaces mechanical maintenance headaches with efficient, solid-state reliability.

Lower Operating Costs

Diesel generators require constant fuel deliveries, routine belt replacements, and active mechanical maintenance. A solid-state battery system eliminates these ongoing variable operational expenses entirely.

Better Integration With Renewable Energy

A diesel generator cannot capture excess solar energy; it can only burn fuel to produce power. Integrating a clean solar-plus-storage layout lets you store clean daytime energy, creating a sustainable, zero-emission backup network.

Practical Recommendations for ESS Developers Choosing BESS Containers

Executing a successful project requires defining your specific site constraints before signing a equipment procurement contract.

Define Your Project Requirements First

Map out your precise power-to-energy ratio, track local seasonal temperature variations, and verify your local utility’s ramp-rate requirements before committing to a specific hardware layout.

Work With a Partner Providing Complete Energy Storage Solutions

Avoid component-only suppliers who simply drop an unconfigured box at your job site. Partnering with a vertically integrated manufacturer ensures your container shell, internal BMS controllers, and central EMS software work together flawlessly.

AnengJi Power Containerized BESS Solutions

At AnengJi Power, we manufacture high-density, fully integrated containerized energy storage solutions designed to perform under demanding industrial conditions. Our systems combine premium LFP chemistry with advanced liquid cooling and multi-tier BMS controls, delivering excellent safety and long-term asset reliability.

Whether your facility requires a compact, space-saving layout or a large utility-scale platform, we supply pre-configured, factory-tested systems tailored to your project goals:

• 100kW / 215kWh – 500kWh Compact Cabinets: Optimized for space-constrained industrial properties, agricultural solar fields, and commercial peak-shaving applications.
• 1MWh to 2.5MWh Standard 20ft Containers: The ideal balance of high energy density and standard, cost-effective global transport logistics.
• 5MWh+ Ultra-High Density 40ft Containers: Engineered specifically to maximize capacity and lower balance-of-system costs on large utility-scale installations.

Frequently Asked Questions About 10ft, 20ft and 40ft BESS Containers

Is a 20ft BESS container better than a 40ft container?

Neither is universally better. A 20ft unit offers superior transport agility and modular expansion flexibility for mid-sized sites, while a 40ft container delivers the best raw cost efficiency for large utility-scale projects.

How much energy can a 20ft BESS container store?

Using 2026 high-density LFP cell designs, a standard 20ft container configuration safely stores between 2.0 MWh and 3.7 MWh of total electrical capacity.

What size BESS container is best for a solar farm?

Large-scale utility installations typically use 40ft containers to maximize capacity per square meter, whereas smaller community solar fields often choose 20ft units for easier local site permitting.

Are larger battery containers always more cost-effective?

Not necessarily. While larger units lower your equipment cost per kilowatt-hour, they can increase on-site installation costs if your location requires specialized transport routing or heavy crane setups.

What factors determine BESS container selection?

Your choice depends on your required discharge duration, total available site space, local transit weight limits, and your long-term capacity expansion plans.

Conclusion: Choosing the Right Container BESS Size for Your Energy Project

Successfully executing a commercial energy project requires matching your hardware enclosure to your actual site constraints. A compact 10ft system offers great agility for tight behind-the-meter locations, while the standard 20ft unit provides a reliable balance of capacity and straightforward logistics for most commercial developments. For large utility-scale installations, opting for a 40ft platform delivers the high-capacity density needed to optimize bulk project economics. By evaluating your local transit routes, land clearances, and electrical load profiles alongside an experienced engineering partner, you can deploy a safe, efficient, and highly profitable asset for the modern grid.
