142kW DC Fast EV Charger | Triple-Gun Commercial DC Charging Station

Product Highlights:

  • All-in-one AC/DC charger with a compact, space-saving design

  • Charges up to 3 vehicles at once: 2 DC guns + 1 AC gun, total output 142 kW

  • Compatible with CCS, CHAdeMO, GB/T, Type 1, and Type 2 connectors — works with most EV models worldwide

  • Supports OCPP 1.6 protocol for easy integration with charging management platforms

  • Remote monitoring, fault diagnostics, and online upgrades for easier, faster maintenance

Inquire Now
Product OverviewSpecificationsFAQs
PreviousNext

Product Overview

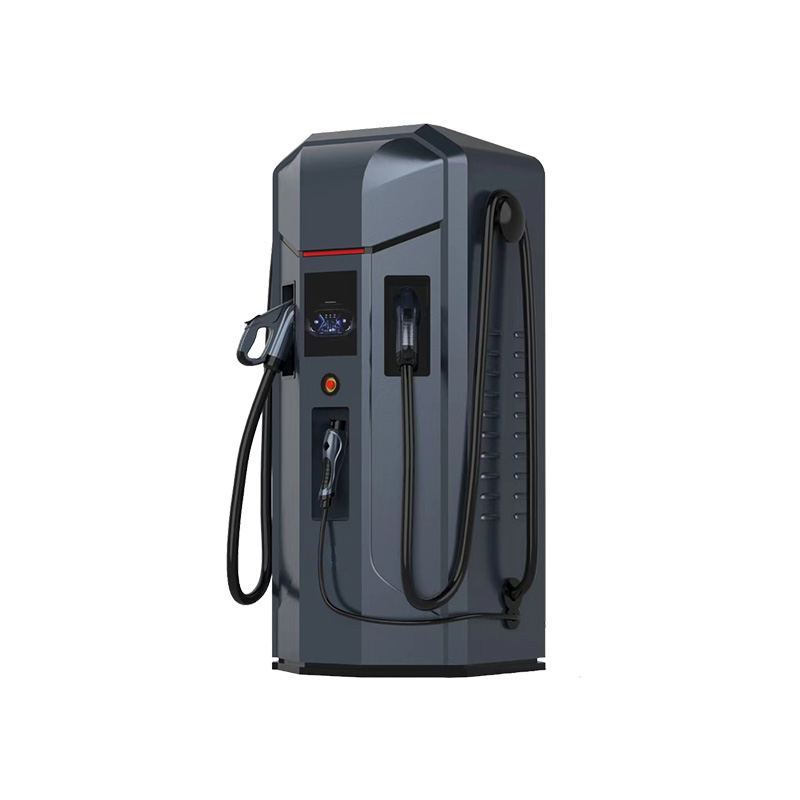

142kW DC Fast EV Charger

Our 142kW DC fast charger delivers powerful, efficient charging for all major EV brands. It features two 60kW DC connectors and one 22kW AC connector, making it a versatile choice for commercial sites, fleet depots, and public charging stations.

Built with a rugged, weatherproof enclosure, it’s designed to perform in any environment—rain, heat, or snow. The unit supports both CCS and CHAdeMO standards, ensuring broad compatibility across global EV models.

Key Features of the 142kW DC Fast Charger

Dual Charging Technology
Delivers both DC and AC power simultaneously. This allows different vehicles to charge at the same time and helps operators get the most out of every station.

Multi-Connector Compatibility
Equipped with three ports—CCS2, CHAdeMO, and an additional CCS2 AC connector—so it supports nearly every EV on the road.

High Efficiency, Low Harmonics
Engineered for superior efficiency and a high power factor. The system runs clean with minimal harmonic distortion, so there’s no need for extra compensation or filtering equipment. That means lower installation and operating costs.

Modular Hot-Swap Design
Each power and control module is independent and hot-swappable. You can replace or upgrade modules on site within minutes, keeping downtime and maintenance costs to a minimum.

Intuitive Display and LED Indicators
A 7-inch sunlight-readable touchscreen makes it easy to view charging data like voltage, power, and session time. LED indicators show real-time operating status at a glance.

Open Communication Protocols
Built-in OCPP 1.6 and 2.0 support lets the charger connect with most major EV charging management platforms. Operators can monitor performance, sync data, and push updates remotely.

Wide Voltage Range
The DC output spans from 200 V to 1000 V, covering nearly all EV battery systems on the market. It’s also ready for next-generation high-voltage vehicles.

Flexible Connector Options
Supports CCS2, CHAdeMO, and Type 2 configurations. We can tailor connector layouts and power ratings to meet local standards or project requirements.

Specifications

Product NameRated Power
Rated power142kW
Installation methodVertical
Feeding methodBottom in and out
Equipment size1735*705*570mm
Input voltageAC380V±15%
Input frequency50±10Hz
Output voltage200-(750)1000VDC/380VAC
Output currentDC:0-200A/AC:32A
Charging cable length5m
AccuracyLevel 1.0
Efficiency≥94.5%
Human-computerinteraction7-inch bright color touch screen,LED Indicator
Charge modeAutomatic charging/fixed power/fixed amount/fixed time
Charging methodSwipe card /Scan code
Networking methodsEthernet/4G
Executive standardsGB/T20234、GB/T18487、GB/T27930、NB/T33008、NB/T33002
Working environmentAltitude:≤2000m;Temperature:-20°C~+50°C
Protection levelIP54
NoiseForced air cooling
MTBF17520h

Product FAQs

The 142kW DC fast EV charger is compatible with CCS, CHAdeMO, and Type 2 connectors, making it suitable for almost every electric vehicle (EV) and plug-in hybrid (PHEV) on the market.
It supports leading EV brands like Tesla (via adapter), Nissan, BMW, BYD, Hyundai, Kia, Volkswagen, and Toyota, among others.
This wide compatibility ensures that operators can serve diverse vehicle fleets and attract more users at public or commercial charging stations.

Yes. The 142kW charger features a triple-gun configuration, including two DC guns (CCS + CHAdeMO) and one AC Type 2 connector.
It can charge two or three vehicles simultaneously, depending on load distribution.
This smart power allocation helps maximize station utilization, reduce wait times, and increase ROI for commercial operators.
It’s a highly efficient setup for EV fleets, dealerships, and multi-vehicle parking facilities.

Charging speed depends on the vehicle’s battery capacity, state of charge, and onboard battery management system.
For most mid-sized EVs (60–80 kWh batteries), the 142kW DC fast charger can bring the battery from 20% to 80% in about 25–30 minutes.
High-voltage vehicles that support 800V platforms can charge even faster. This makes it ideal for fleet depots, highway rest stops, and commercial EV charging hubs where fast turnaround is essential.

Absolutely. It’s built with IP54-rated weatherproof housing and industrial-grade components, offering reliable performance in rain, snow, dust, and heat.
The unit features multiple layers of protection, including overvoltage, undervoltage, overcurrent, leakage, surge, and temperature protection.
Its forced-air cooling system ensures stable operation even under high power loads, making it suitable for 24/7 outdoor commercial environments.

Yes. The 142kW DC fast charger supports customizable connector combinations, output power configurations, and branding options.
We can adjust the design to meet local standards such as GB/T, CCS1/2, or Type 2, and tailor billing modes (RFID, QR code, VIN authentication) to suit private or public use.
This flexibility makes it ideal for EV fleet operators, government projects, and charging network providers seeking tailored DC fast charging solutions.

The charger supports OCPP 1.6 and OCPP 2.0 protocols, which means it can integrate seamlessly with most EV charging management systems worldwide.
Operators can connect via Ethernet, 4G, or WiFi to remotely monitor charging sessions, energy usage, payment data, and real-time performance.
This open-protocol design allows flexible cloud management, billing, and remote diagnostics, making it future-ready for smart city charging networks.

The 142kW DC fast EV charger is purpose-built for commercial charging stations, logistics fleets, bus depots, and highway rest areas.
Its dual-DC plus AC output, smart load balancing, and high-efficiency modules (≥94.5%) make it ideal for high-throughput environments.
Businesses can deploy it as a standalone charging unit or integrate it into a networked charging system with centralized billing, access control, and data analytics for better operational visibility.

Our DC chargers are certified by TUV, CE, CB, and UL. They meet core safety and communication standards like IEC 61851 and IEC 62196. These approvals cover major markets in Europe, North America, and Asia-Pacific, ensuring every unit is safe, compliant, and built to last.

Standard lead time is 30 to 45 working days. The exact schedule depends on order size, configuration, and production planning. We also offer split shipments and rush order support to keep your project on track.

Yes, we do. OEM and ODM customization is available, including branding (logo), interface language, color scheme, and software features. A minimum order quantity applies to custom projects. Contact us for details.

Thanks to its modular hot-swap design, each power and control module can be replaced within minutes without shutting down the whole system.
This greatly reduces downtime and maintenance costs.
Routine maintenance simply involves checking the ventilation filters, cleaning connectors, and verifying firmware updates via the OCPP platform.
Its MTBF (Mean Time Between Failures) exceeds 17,500 hours, ensuring reliable long-term operation for commercial sites.

All chargers come with a standard 2-year warranty covering core components and manufacturing defects. Extended warranty options are available upon request to support long-term operation. Our team is ready to help with special requirements.

Absolutely. AnengJi chargers are built for tough outdoor conditions. With an IP54 rating, they resist water, dust, UV, corrosion, and rust. They run reliably in heat, cold, or humidity—ideal for city streets, parking lots, and highways.

About Level 3 DC Fast Charging

Level 3 DC fast charging is the quickest way to power up an electric vehicle today. Unlike Level 2 AC chargers, which can take hours, a DC fast charger can bring most EVs from 10% to 80% in just 15 to 40 minutes under ideal conditions. It’s the go-to choice for locations where time matters — highways, gas stations, logistics hubs, and other busy commercial sites.

Why Choose Level 3 DC Fast Charging?

Lightning-fast charging:
With output power ranging from 30kW to 480kW (most common models are 30–360kW), these chargers drastically reduce downtime and get vehicles back on the road quickly.

High efficiency for commercial use:
In about 30 minutes, most vehicles can gain 125–300 miles (200–480 km) of driving range — perfect for long-distance routes or fleet operations where every minute counts.

A business advantage:
Adding DC fast chargers can turn your gas station, shopping center, or hotel into a destination. Drivers stay longer, spend more, and associate your brand with innovation and sustainability.

Where Level 3 Chargers Fit Best

Because of their high power draw and the need for specialized installation, DC fast chargers are typically installed at commercial sites with strong grid capacity — not at private homes or standard office buildings. They’re built for places that serve many vehicles daily and require dependable uptime.

DC Fast Charging Solutions from AnengJi

AnengJi offers a complete range of commercial DC fast charging solutions, supporting CCS, CHAdeMO, and GB/T standards to serve all major EV models worldwide.
Power options span from 30kW up to 480kW, allowing businesses and operators to scale according to site demand.

Our chargers are engineered for long-term reliability, network compatibility, and easy integration — helping global partners build high-performance, high-utilization EV charging stations that keep drivers moving and businesses growing.
