Sample: Available
Customization: Supported
Language System: Multi-language support
Input Voltage: 380Vac ±15%
Output Power: 60 / 80 / 120 / 160 kW
Charging Interface: 2 × CCS2 charging cables, or 1 × CCS2 + 1 × GB/T cable option
Authentication: Plug & Charge, RFID, QR code, or credit card (optional)
Backend Support: OCPP 1.6 & OCPP 2.0.1 compliant

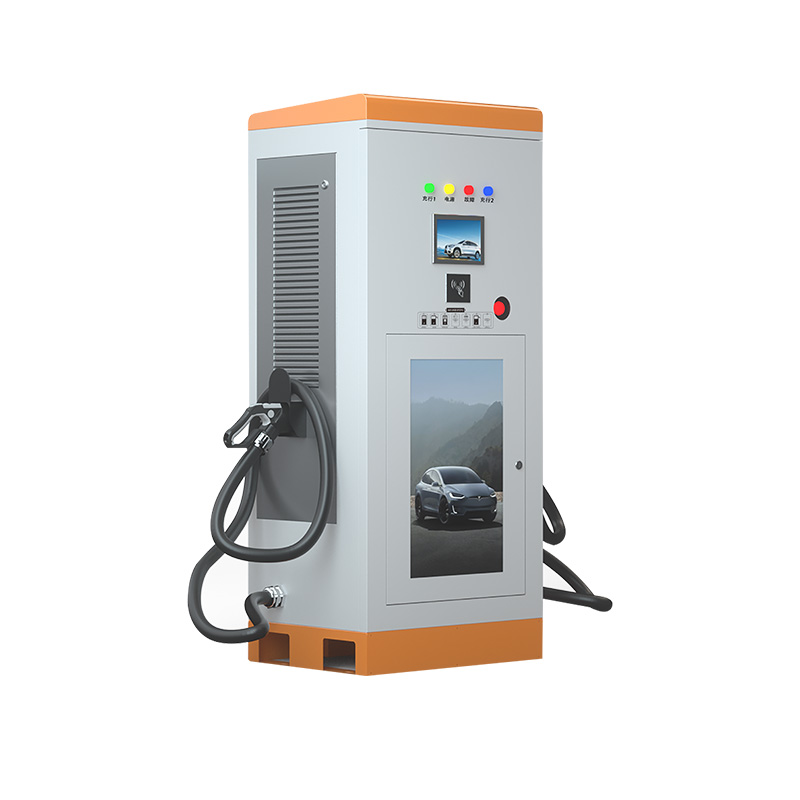

Our DC fast charger features a compact, industrial design built for high-traffic environments like city charging hubs, shopping centers, and transport stations. With flexible power options from 60 kW to 160 kW, it delivers fast, reliable charging for a wide range of EVs.
Compatible with CCS2 dual-gun and CCS + GB/T combo connectors, this charger supports vehicles across Europe, Asia, and other global markets.
It’s equipped with DIN 70121 and ISO 15118 protocols to enable Plug & Charge—so drivers can simply connect and start charging, no extra steps needed. Built-in OCPP 1.6 and OCPP 2.0.1 ensure seamless integration with major network platforms for remote monitoring and smart operation.
The system includes intelligent load balancing, allowing multiple power split modes (0/160 kW, 40/120 kW, 80/80 kW) to optimize grid usage and reduce infrastructure costs. With up to 96% peak efficiency, it keeps energy use low while maintaining powerful performance.
Built to last, the unit meets IP55 weather protection, resists heat and corrosion, and runs dependably in harsh outdoor conditions. It’s a durable, intelligent, and high-efficiency DC charging solution designed to keep commercial EV operations running smoothly, day and night.
HD Touchscreen Display
A bright 7-inch HD touchscreen with LED status lights gives drivers everything they need at a glance — battery SOC, charging time, energy use (kWh), and cost. The interface is crisp, intuitive, and easy to navigate, creating a smooth user experience and complete charging transparency.
Safe and Reliable Operation
Each unit passes rigorous electrical and environmental safety tests. It’s built with full protection against overvoltage, overcurrent, leakage, short circuit, and overheating. Certified to IEC 61851-1:2017 and IEC 62196-2:2016, with an IP54 weatherproof rating, it performs reliably in heat, humidity, and coastal conditions.
Flexible Customization
Power can be configured from 60 kW to 160 kW, with options for single or dual connectors. We offer full branding, color scheme, and software UI customization to match commercial, municipal, or enterprise deployments.
Built to Last
A reinforced metal housing and modular protective structure keep the charger running strong even in harsh outdoor conditions — from extreme temperatures to salt mist environments. Key parts are corrosion-resistant and fully insulated. Every unit includes a 2-year warranty, extendable to 5 years.
Global Compatibility
Built with OCPP 1.6J, the charger works seamlessly with global charging networks and supports CCS1, CCS2, and CHAdeMO connectors. Compatible with Tesla, BMW, Mercedes-Benz, Volkswagen, Nissan, Hyundai, and more — ideal for international fleets and operators.
All-in-One Support
From project planning to installation and after-sales maintenance, we offer end-to-end service. Our technical team provides 24/7 remote support to ensure your charging station runs smoothly from day one.
Smart Maintenance
With modular power and control units, hot-swappable design, and remote diagnostics, maintenance is quick and cost-efficient. Firmware can be updated over the air, reducing downtime and extending service life.
Multiple Payment Options
Supports RFID cards, POS terminals, mobile app QR codes, and NFC payments. Works with major billing systems and fits any business model — from public pay-per-use to membership-based and free guest charging.
Flexible Operation Modes
Choose from offline free, offline billed, or online billed modes. Integrated OCPP remote management enables real-time monitoring, smart billing, and data synchronization — perfect for parking lots, campuses, or highway networks.
| Product Name | Rated Power | |||
|---|---|---|---|---|
| Rated power | 60/80/120kW | 160kW | ||
| Installation method | Vertical | |||
| Feeding method | Bottom in and out | |||
| Equipment size | 1620*750*560mm | |||
| Input voltage | AC380V±15% | |||
| Input frequency | 50±10Hz | |||
| Output voltage | 200-(750)1000VDC | |||
| Output current | 0-200A | |||
| Charging cable length | 5m | |||
| Accuracy | Level 1.0 | |||
| Efficiency | ≥95% | |||
| Human-computerinteraction | 7-inch bright color touch screen,LED Indicator | |||
| Charge mode | Automatic charging/fixed power/fixed amount/fixed time | |||
| Charging method | Swipe card /Scan code /Password | |||
| Networking methods | Ethernet/4G | |||
| Executive standards | EC61851-1:2017;IEC62196-2:2016 | |||
| Working environment | Altitude:≤2000m;Temperature:-20°C~+50°C | |||
| Protection level | IP54 | |||
| Noise | Forced air cooling | |||
| MTBF | 17520h | |||
| Communication protocol | OCPP 1.6J | |||
How fast can this DC charger charge an electric vehicle?
Charging speed depends on your vehicle’s battery capacity and the charger’s rated power.
For example, a 100 kWh EV battery can be charged from 20% to 80% in about 25–35 minutes with a 120 kW charger. Smaller EVs can recharge in as little as 15–20 minutes.
Our 60–160 kW chargers deliver up to 400–1000V DC output, supporting fast, efficient charging for both passenger cars and commercial vehicles.
What types of EVs are compatible with this charger?
This charger supports CCS1, CCS2, CHAdeMO, and GB/T connectors, making it compatible with nearly all modern EVs — including Tesla (with adapter), BMW, Volkswagen, Hyundai, Kia, Nissan, Mercedes-Benz, and BYD.
Its multi-standard support is ideal for fleets and public charging operators that serve vehicles from different regions.
What communication protocols does the charger support?
It fully supports OCPP 1.6J and OCPP 2.0.1, ensuring seamless integration with global charging management platforms.
With these protocols, operators can monitor performance, manage billing, track energy usage, and update firmware remotely — all from a centralized dashboard.
Can this charger be used for both private and public charging?
Yes. It’s designed for commercial, fleet, and public installations, but can also be configured for private business or depot use.
Operators can choose between free charging, offline billing, or online payment modes, depending on their business model or local network setup.
How can drivers pay for charging?
The system supports multiple payment methods for flexibility and convenience:
RFID cards
Mobile app QR code scan
NFC and POS terminal payment
Password or VIN-based authorization
This makes it easy to adapt to public, semi-public, or private charging environments — from retail parking lots to municipal EV networks.
What are the installation requirements?
The charger uses a vertical installation design with bottom cable entry and exit.
It operates on AC 380V ±15%, 50Hz ±10% input and requires a dedicated power supply and grounding.
We provide detailed installation guidance, floor stand options, and technical drawings to ensure quick, safe setup. Professional installation by certified electricians is recommended.
Is the charger weatherproof?
Yes. The charger is built for outdoor use with an IP54 protection rating — resistant to dust, rain, and humidity.
It performs reliably in -20°C to +50°C environments and features corrosion-resistant materials suitable for coastal or high-humidity locations.
How is the charger maintained?
Our DC chargers use a modular design with hot-swappable power units for quick maintenance.
With remote diagnostics, OTA firmware updates, and easy access to key components, maintenance costs and downtime are significantly reduced.
The system automatically records fault logs and alerts operators to potential issues early.
Can I customize the charger design or interface?
Yes. We offer custom branding, color schemes, logo printing, and software UI customization to align with your company image or city project standards.
Whether you’re a charging network operator, OEM, or distributor, we can tailor both hardware and software for your deployment needs.
What kind of warranty and technical support do you provide?
Every unit comes with a 2-year standard warranty, extendable to 5 years.
We offer 24/7 remote technical support, on-site assistance when required, and a complete after-sales service package — ensuring your charging stations remain stable and profitable long-term.
Level 3 DC fast charging is the quickest way to power up an electric vehicle today. Unlike Level 2 AC chargers, which can take hours, a DC fast charger can bring most EVs from 10% to 80% in just 15 to 40 minutes under ideal conditions. It’s the go-to choice for locations where time matters — highways, gas stations, logistics hubs, and other busy commercial sites.
Lightning-fast charging:
With output power ranging from 30kW to 480kW (most common models are 30–360kW), these chargers drastically reduce downtime and get vehicles back on the road quickly.
High efficiency for commercial use:
In about 30 minutes, most vehicles can gain 125–300 miles (200–480 km) of driving range — perfect for long-distance routes or fleet operations where every minute counts.
A business advantage:
Adding DC fast chargers can turn your gas station, shopping center, or hotel into a destination. Drivers stay longer, spend more, and associate your brand with innovation and sustainability.
Because of their high power draw and the need for specialized installation, DC fast chargers are typically installed at commercial sites with strong grid capacity — not at private homes or standard office buildings. They’re built for places that serve many vehicles daily and require dependable uptime.
AnengJi offers a complete range of commercial DC fast charging solutions, supporting CCS, CHAdeMO, and GB/T standards to serve all major EV models worldwide.
Power options span from 30kW up to 480kW, allowing businesses and operators to scale according to site demand.
Our chargers are engineered for long-term reliability, network compatibility, and easy integration — helping global partners build high-performance, high-utilization EV charging stations that keep drivers moving and businesses growing.
