60-360kW Level 3 DC Fast Charging Station for Electric Vehicles
60-360kW Level 3 DC Fast Charging Station for Electric Vehicles
60-360kW Level 3 DC Fast Charging Station for Electric Vehicles

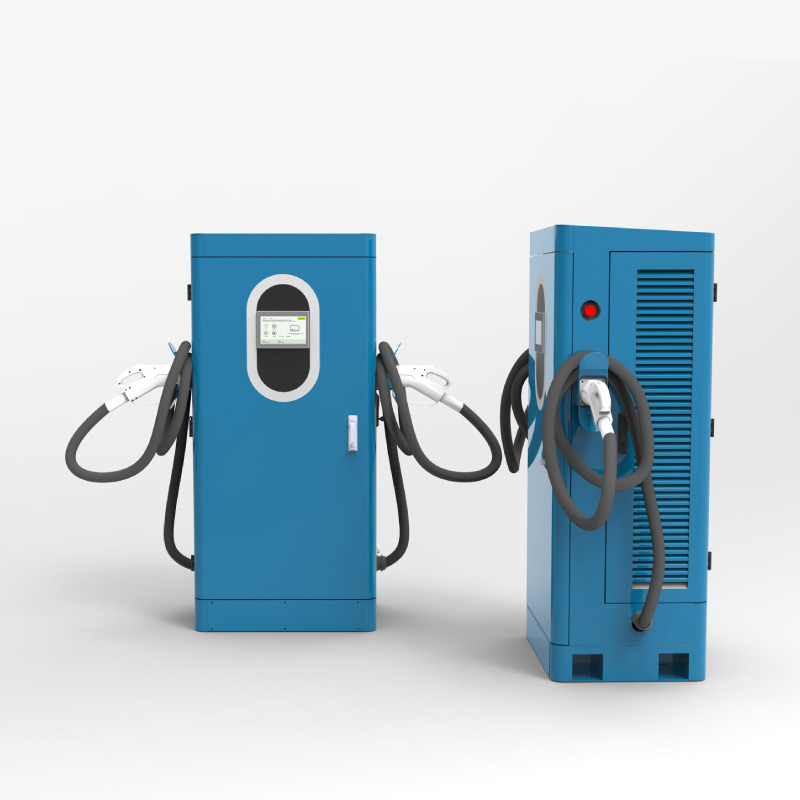

60-360kW Level 3 DC Fast Charging Station for Electric Vehicles-Blue exterior
60-360kW Level 3 DC Fast Charging Station for Electric Vehicles-Blue exterior

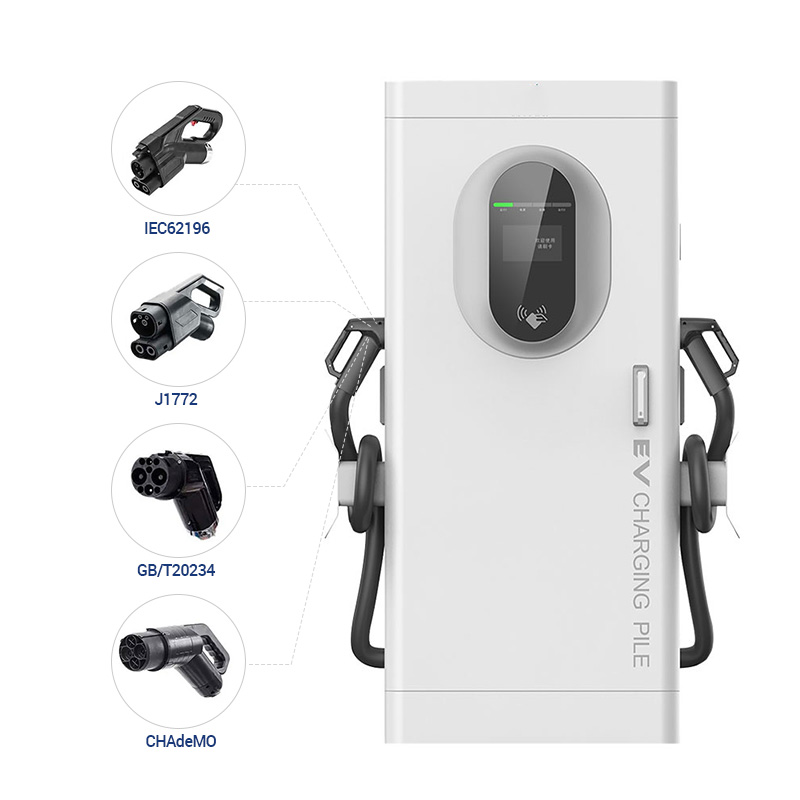

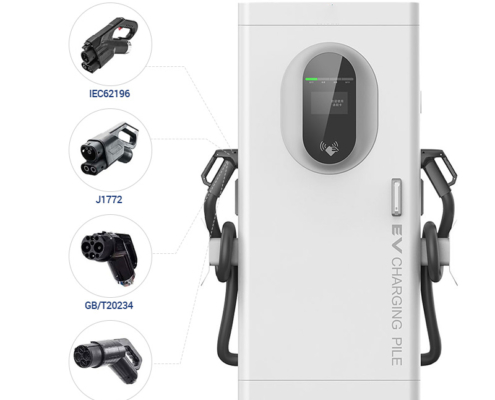

60-360kW Level 3 DC Fast Charging Station for Electric Vehicles-Charging gun head
60-360kW Level 3 DC Fast Charging Station for Electric Vehicles-Charging gun head

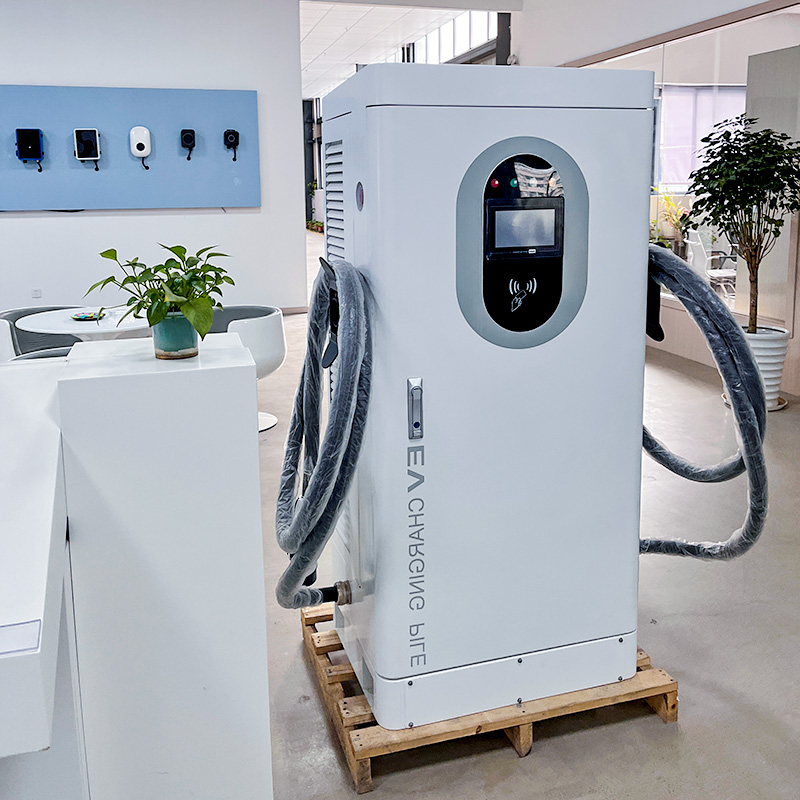

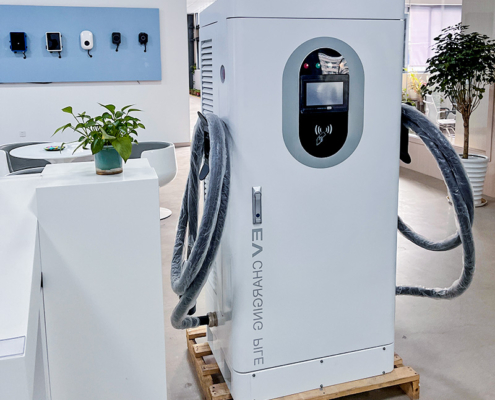

60-360kW Level 3 DC Fast Charging Station for Electric Vehicles-Real shot photos
60-360kW Level 3 DC Fast Charging Station for Electric Vehicles-Real shot photos

60-240kW Level 3 DC Fast Charger | High Power EV Charging Station for Commercial Use

Product Features

  • 60–240kW flexible DC fast charging for every site.
  • Compatible with CCS1, CCS2, CHAdeMO & NACS connectors.
  • Adds up to 62 miles of range in just 5 minutes.
  • Smart billing with offline, semi-online & online modes.
  • 7-inch color touchscreen with real-time charging data.
  • Full protection & IEC-certified for safety and reliability.
  • IP54-rated — built tough for any outdoor condition.
  • Supports OCPP 1.6J for cloud management & remote control.
  • Customizable design — branding, color & UI options.
  • Easy payment via RFID, POS, or mobile app.
Inquire Now
Product OverviewSpecificationsFAQs
PreviousNext

Product Overview

Flexible Operation Modes

Supports offline, semi-online, and online billing modes — ideal for different business models and site conditions.

Ultra-Fast Charging

Delivers up to 240 kW of DC power. Adds roughly 62 miles of range in just 5 minutes. Equipped with a 400A liquid-cooled cable for faster, safer charging and shorter wait times.

Intuitive Touch Display

A bright 7-inch touchscreen shows real-time charging status — including SOC, kWh, session time, and cost. Simple visuals and responsive touch make every interaction effortless.

Built for Safety

Tested to meet IEC 61851-1:2017 and IEC 62196-2:2016 standards. Features multiple protection layers against overvoltage, overcurrent, leakage, and short circuits. Rated IP54 for dust and water resistance, ensuring stable performance in any weather.

Customizable Design

Available from 60 kW to 240 kW. Customize branding, color, or software interface to fit your business identity — perfect for public stations, municipal projects, and private networks.

Rugged and Reliable

Engineered with a robust frame and industrial-grade components to handle extreme heat, cold, or humidity. Comes standard with a 2-year warranty, extendable up to 5 years for added peace of mind.

Global Compatibility

Built on OCPP 1.6J, supporting CCS1, CCS2, and CHAdeMO connectors. Compatible with major EV models — Tesla, BMW, Volkswagen, Nissan, and more.

Complete Service Support

From consultation and site design to installation, commissioning, and after-sales service — our global technical team keeps your EV charging station running efficiently around the clock.

Smart Maintenance

Modular power units and plug-in communication slots make on-site service fast and simple. Easy upgrades reduce downtime and extend system life.

Multiple Payment Options

Accepts RFID cards, POS terminals, and mobile app payments for flexible user experiences and higher transaction convenience.

Intelligent Management

Whether it’s free public charging, private fleet use, or commercial billing, the system adapts to your operation mode with full control via cloud-based management.

Specifications

Product NameRated Power
Rated power60/80/120/160kW180/240kW
Installation methodVertical
Feeding methodBottom in and out
Equipment size1620*750*560mm1800*800*600mm
Input voltageAC380V±15%
Input frequency50±10Hz
Output voltage200-(750)1000VDC
Output current0-200A
Charging cable length5m
AccuracyLevel 1.0
Efficiency≥95%
Human-computerinteraction7 inch bright color touch screen
Charge modeAutomatic charging/fixed power/fixed amount/fixed time
Charging methodSwipe card /Scan code /Password
Networking methodsEthernet/4G
Executive standardsEC61851-1:2017;IEC62196-2:2016
Working environmentAltitude:≤2000m;Temperature:-20°C~+50°C
Protection levelIP54
NoiseForced air cooling
MTBF17520h
Communication protocolOCPP 1.6J

Product FAQs

A 240kW DC fast charger can deliver roughly 62 miles (100 km) of range in just five minutes, depending on the vehicle’s battery size and charging curve.
For most modern EVs, it can charge from 20% to 80% in around 20–30 minutes. Vehicles equipped with 800V battery systems, such as Hyundai Ioniq 5 or Porsche Taycan, can achieve even faster rates thanks to the charger’s wide voltage range (200–1000VDC).

This makes it ideal for highway rest stops, fleet depots, and public charging networks where driver turnover and uptime matter most.

The 240kW DC fast charger supports CCS1, CCS2, and CHAdeMO standards, making it compatible with most EV brands worldwide, including:
Tesla (via adapter), BMW, Mercedes-Benz, Volkswagen, Audi, BYD, NIO, Nissan, Hyundai, Kia, Volvo, and Rivian.

For multi-region operations, the charger can be configured with specific connectors for European, North American, or Asian vehicle standards.
This flexibility makes it an excellent fit for international fleets, EV charging operators, and commercial developers.

Absolutely.
The charger is designed for harsh outdoor use with IP54-rated weather protection and industrial-grade housing. It operates reliably between -20°C and +50°C, resisting rain, snow, dust, and heat.

Each unit undergoes salt mist and humidity testing to ensure corrosion resistance — ideal for coastal areas, highway rest stops, and high-humidity climates.
The forced air cooling system keeps the internal electronics stable during continuous high-power operation.

The charger supports a variety of user-friendly payment methods to fit different business models, including:

  • RFID cards for fleet or membership users

  • QR code scanning via mobile apps

  • POS terminals for credit/debit card transactions

  • NFC and mobile wallet payments (Apple Pay, Google Pay, etc.)

Site owners can choose between free, offline billed, or online billed charging modes. Combined with OCPP 1.6J cloud management, operators can track transactions, manage accounts, and generate billing reports remotely.

Yes — this charger is fully OCPP 1.6J and OCPP 2.0.1 compliant, which means it can connect to most EV charging management platforms for:

  • Real-time monitoring (power, voltage, status, fault alerts)

  • Smart billing and session tracking

  • Dynamic load balancing between multiple chargers

  • Remote firmware updates and diagnostics

With built-in Ethernet and 4G connectivity, operators can manage their stations from anywhere via a web dashboard or mobile platform.

Maintenance is minimal and efficient thanks to its modular design.
Each power module and control board is hot-swappable, so technicians can replace or upgrade components in minutes — no full system shutdown needed.

Routine maintenance includes:

  • Visual inspection of connectors and cables

  • Cleaning air filters

  • Software and firmware updates (done remotely via OTA)

  • Occasional calibration checks for accuracy

With proper maintenance, the charger’s MTBF (Mean Time Between Failures) exceeds 17,000 hours, ensuring long-term reliability and low operating costs.

Yes.
We provide custom branding and configuration options for project developers, OEMs, and charging network operators.
You can customize:

  • Logo and color scheme

  • Connector types (CCS1, CCS2, CHAdeMO)

  • Output power levels (60kW–240kW)

  • Software interface (UI, billing logic, platform integration)

This flexibility allows businesses to match their corporate identity, comply with regional regulations, and optimize user experience for specific market needs.

Each charger includes a 2-year standard warranty, covering hardware and software components.
Extended warranty options up to 5 years are available upon request.

Our global support team provides:

  • 24/7 remote technical assistance

  • Firmware upgrades and diagnostics

  • On-site service or parts replacement (where available)

Whether you’re deploying one charger or an entire EV network, we ensure continuous uptime and dependable after-sales support worldwide.

Yes.
The system supports intelligent load balancing — allowing multiple chargers to share a single power supply without overloading the grid.
Operators can set dynamic power distribution between units (e.g., 120/120kW, 160/80kW, etc.), optimizing energy use and reducing infrastructure costs.

This feature is particularly valuable for commercial fleets, parking lots, and highway service stations with multiple EV stalls.

Installation is straightforward for qualified electricians.
The charger is a vertical floor-mounted unit with bottom cable entry for safety and neat cable management.
A typical setup requires:

  • 380V ±15% AC power input

  • Dedicated circuit breaker and earthing

  • Network connection (Ethernet or 4G)

  • Concrete base or mounting frame

Our technical team provides installation drawings, electrical schematics, and setup guidance, ensuring local compliance and fast commissioning.

About Level 3 DC Fast Charging

Level 3 DC fast charging is the quickest way to power up an electric vehicle today. Unlike Level 2 AC chargers, which can take hours, a DC fast charger can bring most EVs from 10% to 80% in just 15 to 40 minutes under ideal conditions. It’s the go-to choice for locations where time matters — highways, gas stations, logistics hubs, and other busy commercial sites.

Why Choose Level 3 DC Fast Charging?

Lightning-fast charging:
With output power ranging from 30kW to 480kW (most common models are 30–360kW), these chargers drastically reduce downtime and get vehicles back on the road quickly.

High efficiency for commercial use:
In about 30 minutes, most vehicles can gain 125–300 miles (200–480 km) of driving range — perfect for long-distance routes or fleet operations where every minute counts.

A business advantage:
Adding DC fast chargers can turn your gas station, shopping center, or hotel into a destination. Drivers stay longer, spend more, and associate your brand with innovation and sustainability.

Where Level 3 Chargers Fit Best

Because of their high power draw and the need for specialized installation, DC fast chargers are typically installed at commercial sites with strong grid capacity — not at private homes or standard office buildings. They’re built for places that serve many vehicles daily and require dependable uptime.

DC Fast Charging Solutions from AnengJi

AnengJi offers a complete range of commercial DC fast charging solutions, supporting CCS, CHAdeMO, and GB/T standards to serve all major EV models worldwide.
Power options span from 30kW up to 480kW, allowing businesses and operators to scale according to site demand.

Our chargers are engineered for long-term reliability, network compatibility, and easy integration — helping global partners build high-performance, high-utilization EV charging stations that keep drivers moving and businesses growing.
