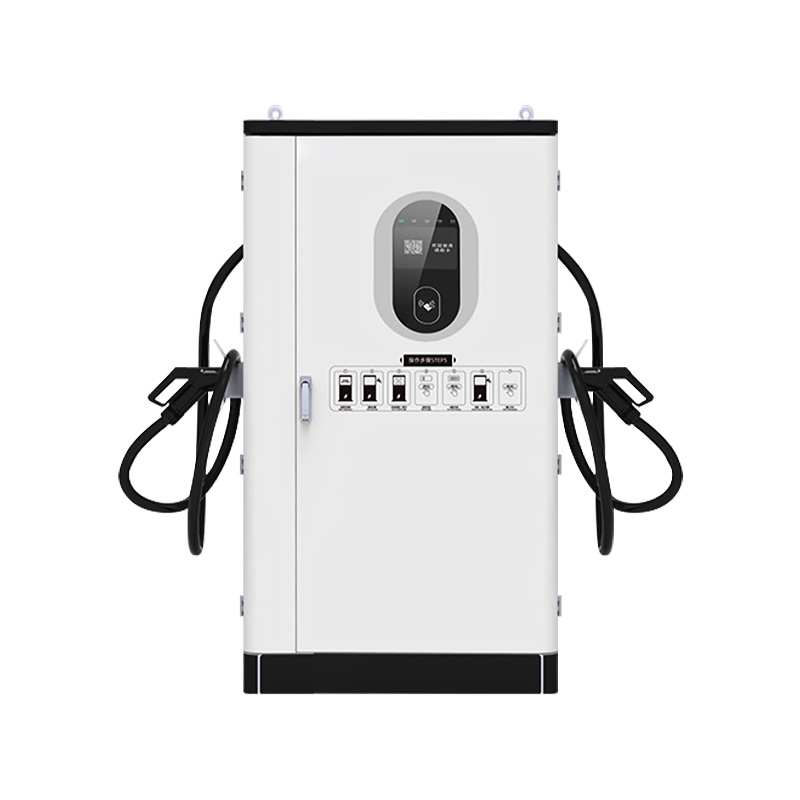

320kW–360kW DC Fast Charger for Electric Trucks and Fleet Operations

Product Highlights:

360kW ultra-fast charging power
Dual-gun smart charging system
7-inch touchscreen interface
Cloud management & OCPP 2.0 compatible
13-layer safety protection system
Supports CCS2 / CCS1 / GB/T / CHAdeMO
Easy installation and maintenance

Product Overview

As electric trucks take on a bigger role in logistics, mining, and ports, charging speed and reliability have become key to keeping operations running efficiently.

Our 320kW–360kW electric truck DC fast charging station is built for high-intensity, high-frequency charging scenarios.

Equipped with a 7-inch touch screen, it supports cloud management, QR code payments, remote OTA updates, and more—delivering a smarter, faster, and easier charging experience for every fleet.

Main Features

7-Inch Touch Screen
A clean, intuitive interface that makes operation simple—even in tough work environments.

Cloud Management System
Real-time monitoring, remote maintenance, and automatic updates help you keep your chargers online and your uptime high.

Dual-Gun Fast Charging
Charge two vehicles at once. With intelligent BMS communication, power output adjusts automatically for each truck—boosting charging efficiency by up to 40%.

IP54-Rated Design
Engineered for outdoor performance with air cooling and weather resistance, ensuring reliable operation under frequent charge/discharge cycles.

Anti-Lightning and Anti-Corrosion Protection
Perfect for ports, mines, and other harsh environments. Built to withstand extreme weather, dust, and salt exposure.

Wide Voltage Range
Compatible with various input/output voltage scenarios, covering a broad range of truck models and site conditions.

Multi-Standard Compatibility
Supports CCS2, CCS1, GB/T, CHAdeMO, Type 1, and Type 2 connectors for flexible global use.

Flexible Control Options
Integrates NFC card access and mobile app control for seamless user authentication.

OCPP 1.6 & 2.0 Compatible
Ensures smooth communication with any back-end management system.

Easy Installation and Maintenance
Compact design and modular layout make servicing simple—one qualified technician can complete most maintenance tasks.

Performance Advantages

Fast and Efficient Charging

This DC fast charging station delivers up to 360kW of power, adding up to 80% charge in just 30 minutes.
For larger batteries (like 500kWh systems), it can reach a full charge in about an hour—helping logistics companies keep their fleets moving all day long.

Smart Management

The 7-inch touch screen is more than a display—it’s a control hub.
With the cloud management platform, you can monitor chargers in real time, manage pricing, push OTA updates, and get instant alerts if something goes wrong.
Through the companion mobile app, drivers can check charging status, pay via QR code or NFC, and even start sessions remotely.

Comprehensive Safety Protection

Every unit includes 13 layers of protection, such as overvoltage, overcurrent, short circuit, leakage, insulation, grounding, communication fault, and temperature safeguards.
Even in unpredictable outdoor environments, it keeps both people and equipment safe—24/7.

Energy Saving and Environmental Performance

The charger uses smart power control to dynamically adjust output between 0–360kW, minimizing energy waste and reducing electricity costs.
Its wide operating temperature range and optimized thermal design make it durable and efficient even under tough conditions.

Applications

Ports and Terminals

For busy port operations where electric trucks move constantly between loading zones and storage yards, uptime is everything.
The dual-gun DC fast charger keeps multiple vehicles powered at once—boosting logistics efficiency and turnaround times.

Mining Sites

In harsh, dusty environments, reliability is critical.
With IP54 protection, anti-lightning, and anti-corrosion design, this industrial-grade EV charging solution delivers stable performance under extreme conditions.

Highway Service Areas

Electric trucks can recharge up to 80% in 30 minutes, helping drivers cut downtime and ease range anxiety during long hauls.

Logistics Parks

Designed for fleet operations where charging demand peaks at the same time, this high-power DC charging station supports multiple vehicles simultaneously—improving fleet turnover and site utilization.

Ideal Users

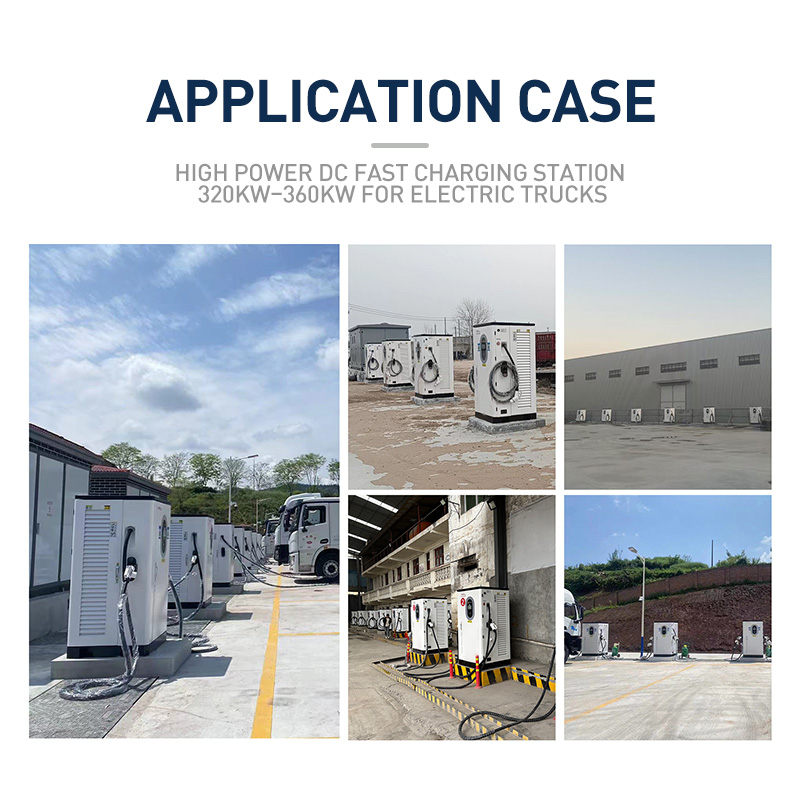

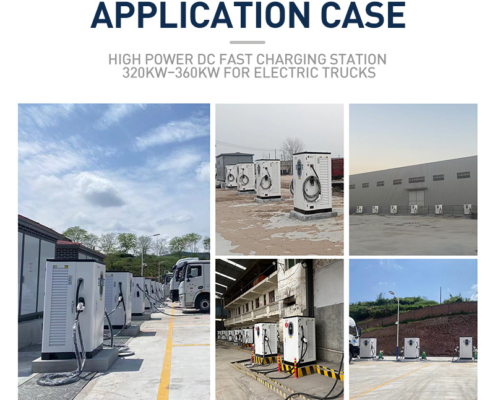

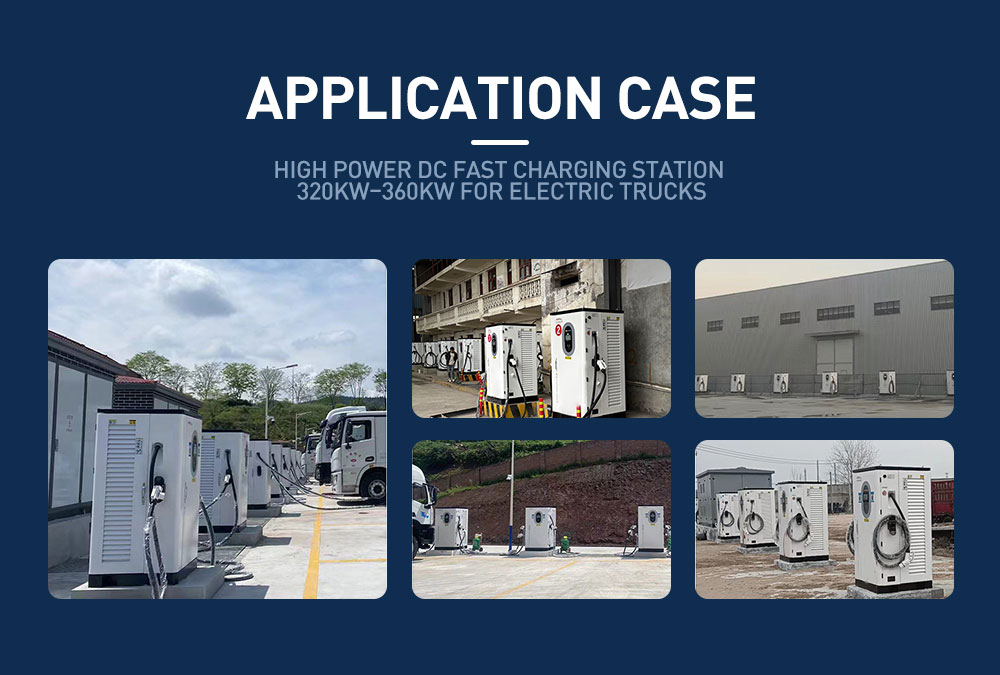

320-360kW High-Power DC Fast Charging Application Case Showcase

Fleet Operators & Logistics Companies

For companies where time is money, reducing charging downtime means higher vehicle availability and lower operational costs.
This commercial DC fast charger is optimized for large-scale fleet deployment.

Port, Mine, and Construction Managers

When the job never stops, reliability matters most.
With 360kW of power, strong protection, and remote monitoring, it’s built to keep your site running efficiently—no matter the conditions.

Urban Infrastructure Planners

As cities expand their EV charging infrastructure, this solution fits perfectly into public or semi-public charging projects.
It supports OCPP 2.0, integrates with existing systems, and aligns with green transport initiatives.

Heavy Truck Leasing Companies

Offer your customers a worry-free charging experience.
With robust build quality and flexible deployment, this electric truck charging station is a smart investment that enhances your brand value.

Specifications

Product Name	DC Charging Station
Rated power	320kW	360kW
Equipment size (mm)	10009001850mm
Input Voltage	380Vac±15%
Input frequency	45-65Hz
Output voltage	DC200-1000V
Output current	0-200A
Accuracy	Level 1.0
Efficiency	≥95%
Human-computer interaction	7 -inch bright color touch screen,LED lndicator
Working Environment	Altitude:≤2000m;Temperature:-20°C~+50°C
Communication protocol	OCPP1.6J
Charge mode	Automatic charging full/Fixed power/Fixed Amount/Fixed time
Charging method	Swipe card, scan code
Networking methods	Ethernet, 4G
Executive standard	IEC 61851-1:2017;1EC 62196-2:2016
Charging cable length	Standard 5 meters(optional)
Protection grade	IP54
Protection function	Overvoltage protection, undervoltage protection, overload protection, short-circuit protection, ground protection, overtemperature protection, communication fault protection, emergency stop protection, and leakage protection.
Noise	Forced air cooling
Installation method	Vertica
Feeding method	Bottom in and out
MTBF	17520h

Product FAQs

What types of electric vehicles can use the 320kW–360kW DC fast charger?

This DC fast charging station is designed for heavy-duty electric trucks, logistics fleets, and commercial EVs. It supports multiple charging standards including CCS2, CCS1, GB/T, and CHAdeMO, making it compatible with most global EV truck models. Whether used in ports, mines, or logistics parks, it delivers stable, high-efficiency power for all large electric vehicles.

How long does it take to charge an electric truck using this 360kW DC fast charger?

Charging speed depends on the truck’s battery capacity. Generally, this high-power DC fast charger can charge a 500kWh battery to 80% in about 30 minutes, or to full in around one hour. For logistics fleets or long-haul trucks, this means less downtime and higher operational efficiency.

Is the 360kW DC fast charging station suitable for outdoor use?

Yes. The charger is built for industrial and outdoor environments. It features an IP54-rated enclosure, anti-corrosion and anti-salt spray protection, and wind-cooled thermal management. These ensure reliable operation in challenging conditions such as ports, mining sites, or roadside service areas.

Does this EV truck charging station support remote monitoring and management?

Absolutely.

The unit includes a 7-inch touchscreen interface and connects to a cloud-based management system. Operators can remotely monitor status, track energy use, perform OTA updates, and adjust pricing strategies. It’s also OCPP 1.6 and OCPP 2.0 compatible, ensuring seamless integration with most EV management platforms.

How safe is the 360kW DC charger during operation?

Safety is a top priority. The charger includes 13 layers of protection, such as overvoltage, overcurrent, insulation, ground fault, temperature, and reverse polarity protection. It also features emergency stop and real-time monitoring to guarantee secure, stable operation under any condition.

What are the installation and maintenance requirements?

The 320kW–360kW DC fast charger is designed for easy installation and minimal maintenance. Once positioned, a single qualified technician can complete setup or basic servicing. The modular design allows for quick replacement of power modules, reducing downtime and maintenance costs.

About Level 3 DC Fast Charging

Level 3 DC fast charging is the quickest way to power up an electric vehicle today. Unlike Level 2 AC chargers, which can take hours, a DC fast charger can bring most EVs from 10% to 80% in just 15 to 40 minutes under ideal conditions. It’s the go-to choice for locations where time matters — highways, gas stations, logistics hubs, and other busy commercial sites.

Why Choose Level 3 DC Fast Charging?

Lightning-fast charging:
With output power ranging from 30kW to 480kW (most common models are 30–360kW), these chargers drastically reduce downtime and get vehicles back on the road quickly.

High efficiency for commercial use:
In about 30 minutes, most vehicles can gain 125–300 miles (200–480 km) of driving range — perfect for long-distance routes or fleet operations where every minute counts.

A business advantage:
Adding DC fast chargers can turn your gas station, shopping center, or hotel into a destination. Drivers stay longer, spend more, and associate your brand with innovation and sustainability.

Where Level 3 Chargers Fit Best

Because of their high power draw and the need for specialized installation, DC fast chargers are typically installed at commercial sites with strong grid capacity — not at private homes or standard office buildings. They’re built for places that serve many vehicles daily and require dependable uptime.

DC Fast Charging Solutions from AnengJi

AnengJi offers a complete range of commercial DC fast charging solutions, supporting CCS, CHAdeMO, and GB/T standards to serve all major EV models worldwide.
Power options span from 30kW up to 480kW, allowing businesses and operators to scale according to site demand.

Our chargers are engineered for long-term reliability, network compatibility, and easy integration — helping global partners build high-performance, high-utilization EV charging stations that keep drivers moving and businesses growing.
